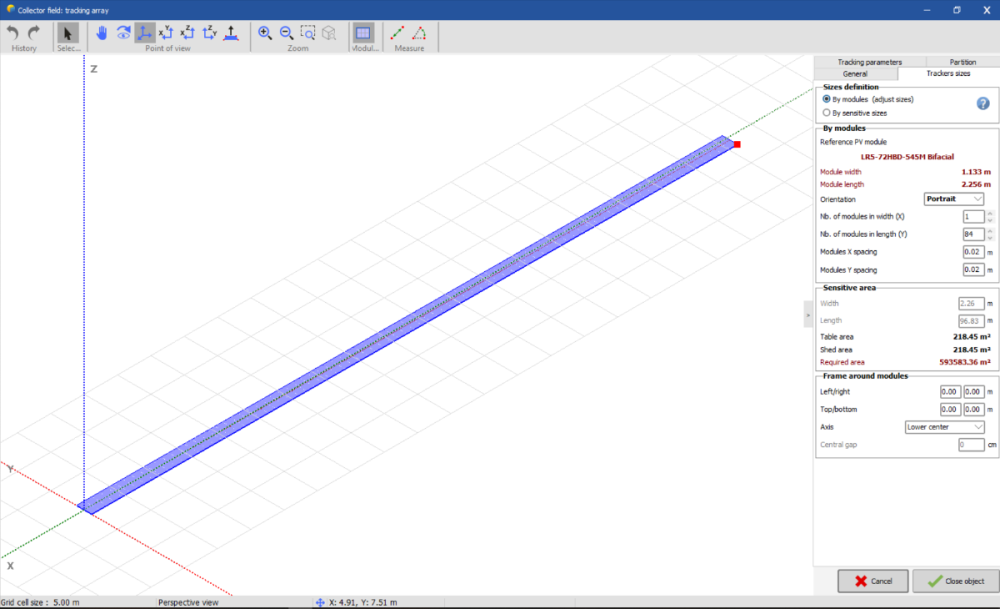

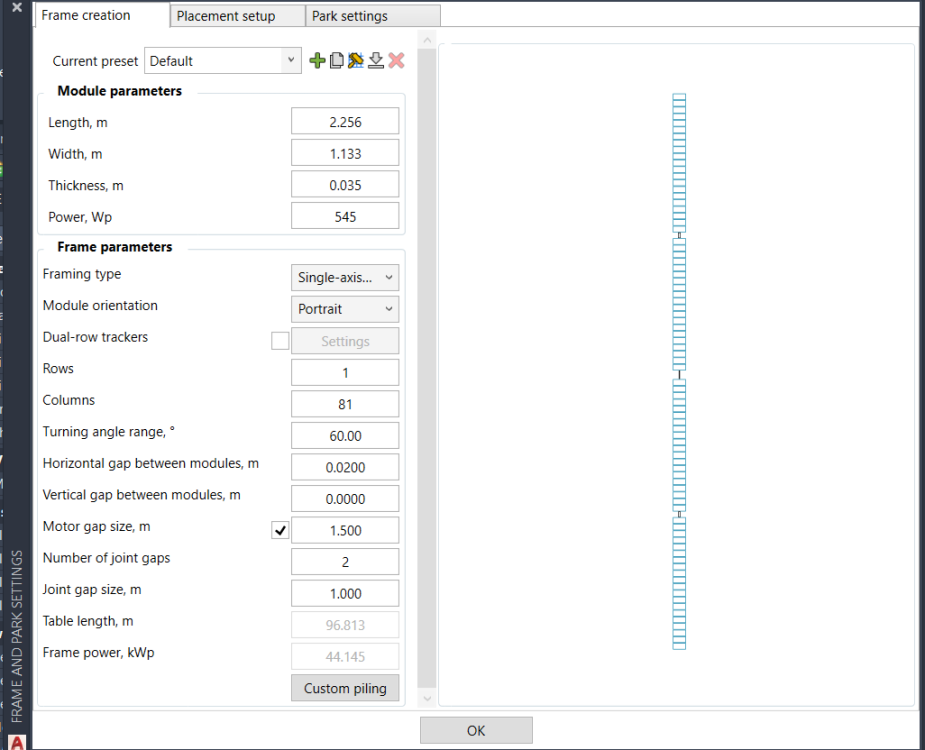

audlau Posted February 1, 2023 Share Posted February 1, 2023 I am currently trying to import a PVcase tracker layout with each tracker consisting of 3-strings and multiple gaps (central motor gap and 2 smaller gaps). Is there anyway to import this directly into PVsyst or add the gaps manually once in PVsyst? I can see the option of "central gap" within PVsyst however it is greyed out and won't let me edit. The other issues this is causing is that the tracker consists of 81 panels (3 x 27) however PVsyst recognises it as a tracker with 84 panels and no gaps. Link to comment Share on other sites More sharing options...
dtarin Posted February 2, 2023 Share Posted February 2, 2023 The central gap in PVsyst is for 2P trackers, and defines the spacing between the two modules in portrait. It does not define gaps for motors or bearings . Link to comment Share on other sites More sharing options...
Michele Oliosi Posted February 3, 2023 Share Posted February 3, 2023 Indeed, you cannot establish a gap between each string length in a PVsyst 3D table or tracker. Only a homogeneous gap between each module, and an extra gap for the torque tube / longitudinal central spacing (central gap) if needed. I would suggest splitting the tracker into three trackers, already in the PVcase design. Is that an option for you ? Link to comment Share on other sites More sharing options...
sgf20 Posted August 17, 2023 Share Posted August 17, 2023 Is it possible to create a central gap for 2L trackers when importing a 3D scene? Link to comment Share on other sites More sharing options...
Michele Oliosi Posted August 18, 2023 Share Posted August 18, 2023 18 hours ago, sgf20 said: Is it possible to create a central gap for 2L trackers when importing a 3D scene? I see no reason why it shouldn't be possible. But please let us know if it doesn't work out. Link to comment Share on other sites More sharing options...
sgf20 Posted December 7, 2023 Share Posted December 7, 2023 (edited) On 8/17/2023 at 3:46 PM, sgf20 said: Is it possible to create a central gap for 2L trackers when importing a 3D scene? When I create the 2L trackers in PVcase with a central gap and import to PVsyst, the gap disappears. This results in an error message, since PVsyst incorrectly interprets the imported scene: "The area of the 3D fields is lower than the area of the modules defined in the subarrays." According to PVcase: PVsyst does not support the center gap. They take the total size of the frame from PVcase and divide by the size of the module to get the number of modules in the frame. Do you have any suggestions on how to properly run a 2L simulation with a central gap in PVsyst based on an imported scene from PVcase? Edited December 7, 2023 by sgf20 spacing Link to comment Share on other sites More sharing options...
Stéphane Posted December 8, 2023 Share Posted December 8, 2023 Hello, We have the notion of central gap in PVsyst but maybe this information is not in the PVC file that you are trying to import. Can you please send us the PVC file by email at support@pvsyst.com ? This way we will check and if the information is missing we will reach out to PVCase to see how we can improve our integration in future versions. Thanks in advance. Link to comment Share on other sites More sharing options...
