Table 12 x 24 with 'average' day of month

[bturner]

I'm trying to produce a 12 x 24 table after the simulation (Hours vertically and months horizontal with MWh as an output. Can someone give me some assistance? Below is a similar table

Average Wind Farm Production (MW) Month

Hour January February March April May June July August September October November December Grand Total

0 25.61 25.66 28.24 29.63 28.27 29.71 28.56 27.82 28.28 30.25 28.72 26.21 28.10

1 25.69 26.82 28.37 29.35 28.39 29.25 28.05 26.57 27.48 29.70 28.10 25.97 27.82

2 26.27 27.07 28.93 29.72 29.27 29.45 26.90 26.24 27.17 29.77 28.52 25.68 27.91

3 27.67 25.92 28.46 30.04 29.34 29.45 26.43 26.25 26.20 28.50 28.45 25.44 27.69

4 28.42 25.50 28.40 30.23 27.83 28.54 25.89 25.85 26.34 27.64 28.28 25.43 27.37

5 27.86 24.58 28.58 30.20 28.36 27.88 24.33 24.30 24.49 27.41 27.82 25.41 26.78

6 26.82 24.05 28.75 29.05 26.79 26.15 20.79 22.49 23.43 26.47 28.07 24.84 25.64

7 25.49 22.71 27.26 26.86 24.68 22.93 17.25 16.31 20.90 25.19 28.12 24.39 23.48

8 23.33 21.38 24.88 25.99 24.27 23.11 16.08 14.19 17.65 20.56 24.72 22.46 21.52

9 19.72 19.70 23.82 25.31 22.86 23.18 14.51 13.83 17.95 20.33 22.08 20.15 20.26

10 18.02 18.56 22.59 25.02 21.95 22.99 13.64 13.06 17.98 21.18 22.08 18.78 19.62

11 18.06 18.01 22.32 24.50 21.54 23.27 14.32 13.12 17.78 21.82 22.28 18.91 19.64

12 17.97 17.83 23.02 24.99 21.68 23.86 15.37 13.26 17.11 21.63 23.31 18.50 19.86

13 18.04 18.44 23.43 25.18 22.06 24.67 16.54 13.25 16.49 21.25 24.09 18.50 20.14

14 18.18 19.43 23.47 25.25 21.79 25.61 18.14 13.21 16.57 22.16 24.45 18.34 20.52

15 18.58 19.27 23.40 25.06 22.02 26.27 20.05 15.12 17.30 22.15 24.17 17.66 20.90

16 18.12 20.02 24.05 24.38 22.69 27.89 21.22 17.59 18.03 21.96 23.11 17.00 21.33

17 18.98 20.42 23.64 25.24 22.81 29.02 22.42 20.01 18.18 21.17 22.90 17.64 21.86

18 21.72 22.12 24.05 24.30 22.69 29.42 23.87 19.21 20.02 24.19 24.78 19.89 23.01

19 23.43 24.18 25.35 24.70 24.56 29.22 24.30 22.49 23.06 26.61 26.21 22.39 24.70

20 23.81 25.04 26.48 27.26 26.47 30.28 27.45 27.82 25.82 27.82 27.75 23.12 26.60

21 23.92 25.82 28.30 28.63 27.50 31.88 27.89 29.32 26.31 28.19 28.53 24.62 27.59

22 24.59 26.22 28.65 30.01 28.33 31.89 29.16 29.22 27.51 29.25 28.34 25.85 28.27

23 25.42 26.10 28.69 29.78 29.12 31.40 28.94 29.20 28.21 30.48 28.87 26.54 28.59

Total 22.73 22.65 25.93 27.11 25.21 27.39 22.17 20.82 22.06 25.24 25.99 22.24 24.13

[Bruno Wittmer]

PVsyst does not foresee to produce directly tables with hourly values of the 'average' day for each month.

If you want to create such a table, you need to create a table with hourly values for all the days of a year and export it to some calculation software (e.g. MS Excel) where you can perform the monthly averaging for each hour of the day.

The procedure is the following:

In the simulation dialog, before you start the simulation, you have a button named 'Output File'.

Here you can select with much detail what kind of values you want to save, in which kind of format and specify an ouput filename.

In your case you would want to select 'hourly values' and include 'Energy injected into grid' in the list of variables.

The values will be saved as comma-separated values (CSV), which you can easily import into many analysis software packages.

[Bruno Wittmer]

This kind of table is now implemented in the next PVsyst Version 6.18.

[just _solar]

I am not able to find the way to generate 12x24 data, can you please walk me through steps ?

Thanks!

[dtarin]

I am not able to find the way to generate 12x24 data, can you please walk me through steps ?

Thanks!



Here is a sample file, this should help.

[gonecrawfishin]

That file is no longer available, does anyone know how to export a 12x24 table?

[gonecrawfishin]

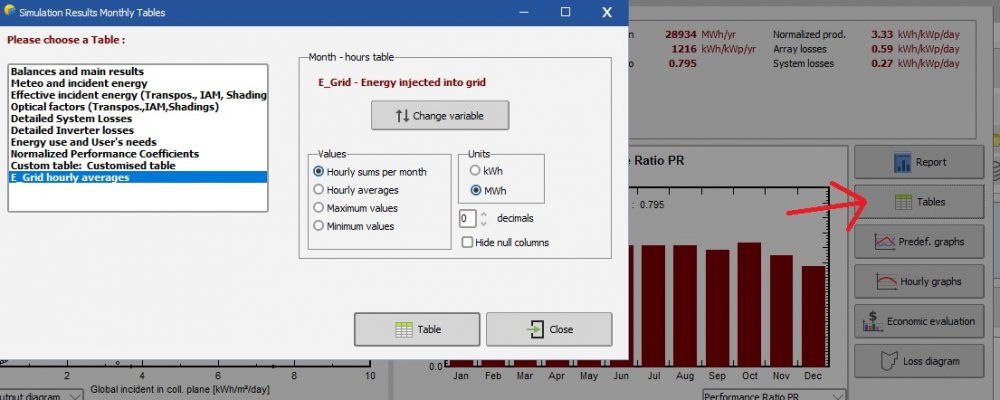

I found it yall!
