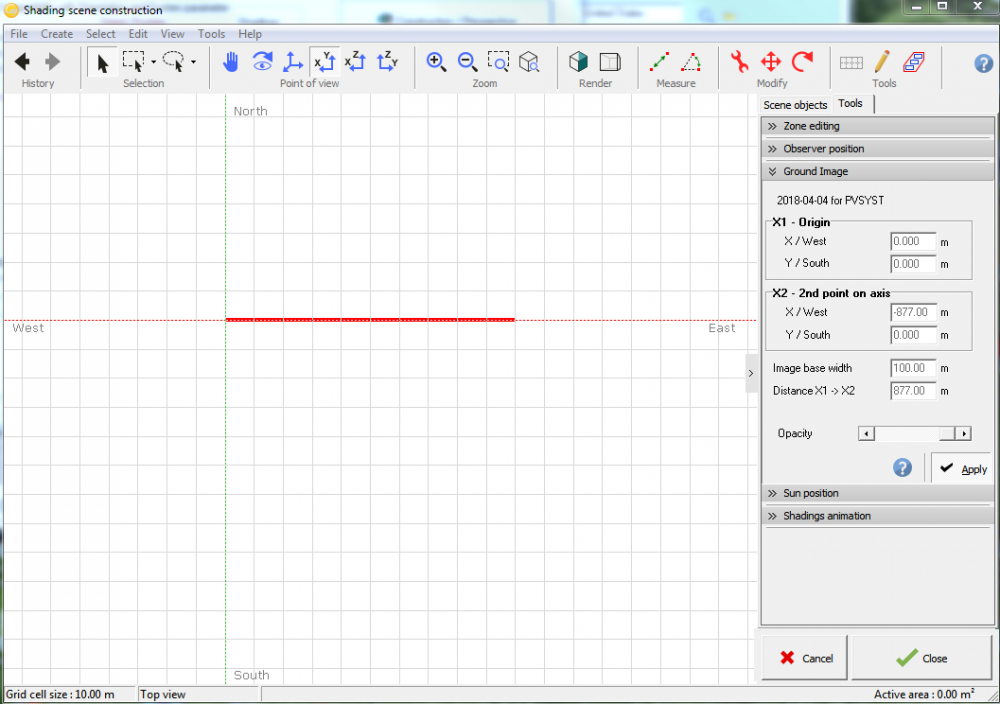

gonecrawfishin Posted April 4, 2018 Share Posted April 4, 2018 I am trying to import a ground image, and appear to be missing something fundamental. My image should be 877m wide. When I import, all I see is a red line. How do I view the image? Where is "image base width" defined in the help section? Link to comment Share on other sites More sharing options...
gonecrawfishin Posted April 11, 2018 Author Share Posted April 11, 2018 Has anyone else had this issue? It seems like "image base width" should be the distance of the width of the image, but I can't understand why it should be different than the distance from x1->x2. I'm struggling to find definitions in the help section. Link to comment Share on other sites More sharing options...
Sylvain Pepoli Posted April 18, 2018 Share Posted April 18, 2018 Hello,Is this happening only when you click on "Apply" ? Or does the picture never appear correctly ?Can you please attach the picture you are trying to load so I can try on my side ? Link to comment Share on other sites More sharing options...
gonecrawfishin Posted April 18, 2018 Author Share Posted April 18, 2018 Thanks, I just emailed you the (confidential) image. The email just bounced, though. sylvain@pvsyst.com ? I haven’t had success with any image, though. The red line shows up when I hit apply, though I never do see the actual image. Link to comment Share on other sites More sharing options...
gonecrawfishin Posted April 25, 2018 Author Share Posted April 25, 2018 All,I learned that the image was not importing because it was too large, not in file size (it was <1MB) but in number of pixels. After reducing resolution, I was able to import the image. The help section's explanation of the transformation tools are still very unintuitive. I got this to work: It seems x1 and x2 are only used in rotation, not scaling. They are just two points (in the original coordinate system when the image is imported) that will be rotated to be the x (west-east) axis. I accomplished scaling by entering a value in "image base width", or the width of your full image."Distance x1->x2" doesn't seem to do anything, though. I left it at the default "100m" and my image scaled properly, even though my actual distance from x1->x2 should be 585.2m. -Jen Link to comment Share on other sites More sharing options...
