Abeer Posted September 8 Share Posted September 8 When I insert a PV array on a plant with a 3-degree slope and set the tilt angle to 25 degrees, after updating the orientation with the shading scene, the tilt changes to 25.6 degrees. However, when I check the array, the tilt is still 25 degrees. Why is there a discrepancy? Link to comment Share on other sites More sharing options...
Muhammed Sarikaya Posted September 10 Share Posted September 10 Dear Abeer, I imagine you set the orientation angle at 25 degrees, which will remain the same. Then, in the 3D scene, you can add the slope, and for the simulation, the final orientation with the slope added will be used. Could you provide more details about your question? A screenshot would also help me answer you more precisely. Regards, Muhammed Sarikaya Link to comment Share on other sites More sharing options...
Abeer Posted September 11 Author Share Posted September 11 On 9/10/2024 at 11:20 AM, Muhammed Sarikaya said: Dear Abeer, I imagine you set the orientation angle at 25 degrees, which will remain the same. Then, in the 3D scene, you can add the slope, and for the simulation, the final orientation with the slope added will be used. Could you provide more details about your question? A screenshot would also help me answer you more precisely. Regards, Muhammed Sarikaya Dear Mohammad, Thank you for your help. As shown in the attached photo, I have a large plant with varying slopes. I initially set the tilt to 25 and then activated Auto Altitude. As a result, the actual tilt adjusted to 25.6, and the real azimuth also changed. I need the azimuth to be zero and the tilt to remain at 25, but in the current orientation, both the actual tilt and azimuth are displayed. Best regards, Abeer Link to comment Share on other sites More sharing options...
dtarin Posted September 12 Share Posted September 12 Your panels are placed with a 25 degree tilt and 0 azimuth onto a sloped terrain, resulting in an effective tilt and azimuth used in the simulation for calculations. This is typical. Link to comment Share on other sites More sharing options...

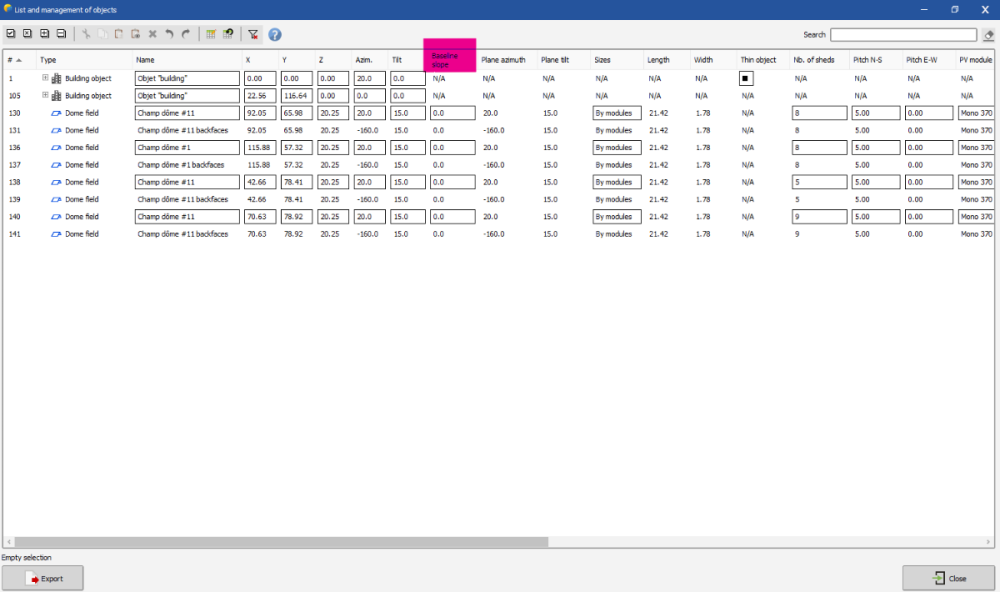

Muhammed Sarikaya Posted September 13 Share Posted September 13 Dear Abeer, I invite you to watch this tutorial for a more detailed explanation: There is a workaround: in the shading window, go to "Tools > List and Management of Objects." Then, change all the baseline slopes to 0, as shown below: However, your PV array will not automatically adjust to the terrain; they will all have different heights. Try this and let me know if you succeed. Regards, Muhammed Sarikaya Link to comment Share on other sites More sharing options...
Abeer Posted September 15 Author Share Posted September 15 Dear Mohammad, Following your suggestion, the distribution appears as shown in the attached image. Is this acceptable for the simulation? I will certainly raise the modules further above the plant, but would this setup impact the results? The results will serve as the guaranteed values for the project. Regards, Abeer Sabbah Link to comment Share on other sites More sharing options...
Muhammed Sarikaya Posted September 16 Share Posted September 16 Dear Abeer, Your simulation may not perform well. It would be better to place the PV table above the topography. Regards, Muhammed Sarikaya Link to comment Share on other sites More sharing options...
