Error message : Orientation #4 but no PV array has been attributed to it.

[Swonno]

Hello PVSyst team,

I'm having error message so that can not simulate the project.





Since i created table using zone feature , I think it happend.

Orientation 4 was not defined in 3D batch but how come the error message keep pushing me to define in the system.



Please guide me.



Thank you,

Swonno

Edited July 17 by Swonno

[Muhammed Sarikaya]

Dear Swonno,

First and foremost, you must ensure that the surface area matches between the system definition and the 3D scene. What is your objective? Is the PV area defined in the system the actual PV area, or is it the one you defined in the 3D scene? You must adjust one of them to ensure they match.

You can also use the 'Orientation Management' tool in the 3D scene.

This tool helps you understand the extent and direction of the orientation.

Regards,

Muhammed Sarikaya





[Swonno]

8 minutes ago, Muhammed Sarikaya said:

Dear Swonno,

First and foremost, you must ensure that the surface area matches between the system definition and the 3D scene. What is your objective? Is the PV area defined in the system the actual PV area, or is it the one you defined in the 3D scene? You must adjust one of them to ensure they match.

You can also use the 'Orientation Management' tool in the 3D scene.

This tool helps you understand the extent and direction of the orientation.

Regards,

Muhammed Sarikaya





Hello Muhammed,



Thank you for the explanation.

This is the way that i usually do.

For single dialection, I priorize system setting capacity(series * strings) that i set when i make a project.

For multi dialection, I set system for capacity but PVSyst wants me to define and set each single dialection and capacity.

This case will be multi dialection. I have to define dialection but the way that i check and set each multidilection is that check system overview part of written 3D batch area and system area. And I do refer 3d batch area and match with system. but in this case, i can not see any area defined in Orientation 4 in system overview.



[Swonno]

21 minutes ago, Muhammed Sarikaya said:

Dear Swonno,

First and foremost, you must ensure that the surface area matches between the system definition and the 3D scene. What is your objective? Is the PV area defined in the system the actual PV area, or is it the one you defined in the 3D scene? You must adjust one of them to ensure they match.

You can also use the 'Orientation Management' tool in the 3D scene.

This tool helps you understand the extent and direction of the orientation.

Regards,

Muhammed Sarikaya





Thank you for guiding me,

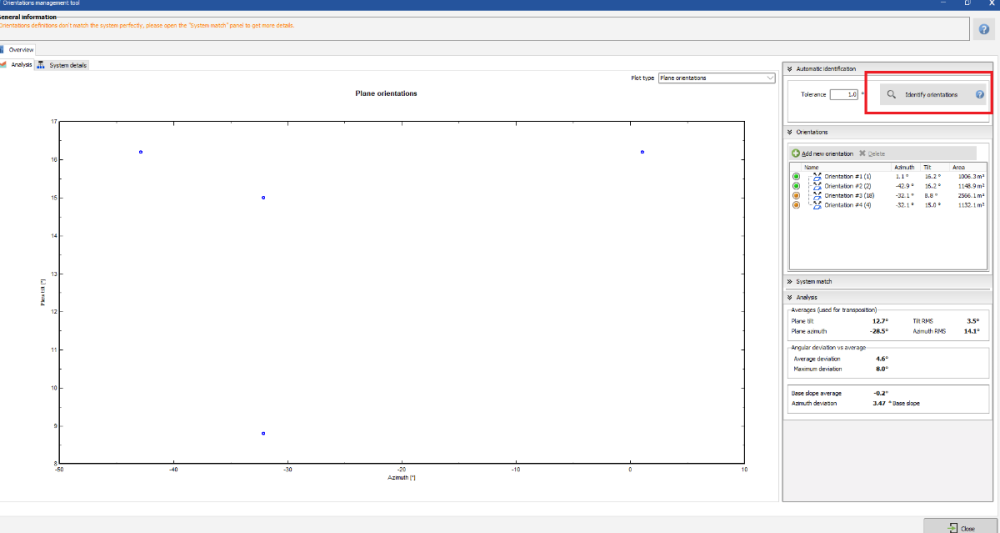

I clicked the red bot which is "Identify orientations" and got an alert that is written which is you will be reset your all orientation something like that.

Now the error message disappeared.



Thank you have a wonderful day.
