Hallo,

we have the following case:

Quote

3 sub-arrays defined
Sub-array #1                                                             Without OPT
Orientation #1                                                           Tilt/Azimuth = 20.0° / -90.0°
PV modules:                                                               2 strings of 7 modules in series,  14 total
Pnom = 460 Wp                                                     PNom array = 6.4 kWp, area = 27 m²
Inverters (10.00 kWac)                                             1 MPPT inputs, Total 5 kWac,  Pnom ratio = 1.29
Sub-array #2                                                             With Optimizer 1
Orientation #2                                                           Tilt/Azimuth = 20.0° / 90.0°
PV modules:                                                               1 strings of 7 modules in series,  7 total
Pnom = 460 Wp                                                     PNom array = 3.2 kWp, area = 13 m²
Inverters (10.00 kWac)                                             1 MPPT inputs, Total 5 kWac,  Pnom ratio = 0.64
Sub-array #3                                                             With Optimizer 2
Orientation #3                                                           Tilt/Azimuth = 30.0° / 0.0°
PV modules:                                                               1 strings of 6 modules in series,  6 total
Pnom = 460 Wp                                                     PNom array = 2.76 kWp, area = 12 m²

The inverter has 2 MPPT, and we have 3 different orientations.

Then we would use optimizers in PVSyst. But,when we try to go into "power sharing", there we have inverter with 2 MPPT and 3 subarrays/orientations.

How could we manage this situation, i.e. simulate 3 orientations with a 2 MPPT inverter?

Thanks a lot

##### Share on other sites

Dear Emi,

In your configuration you must define orientation1 and 2 with "mix 1 and 2" the define your sub-array N°3 as orientation N°3.

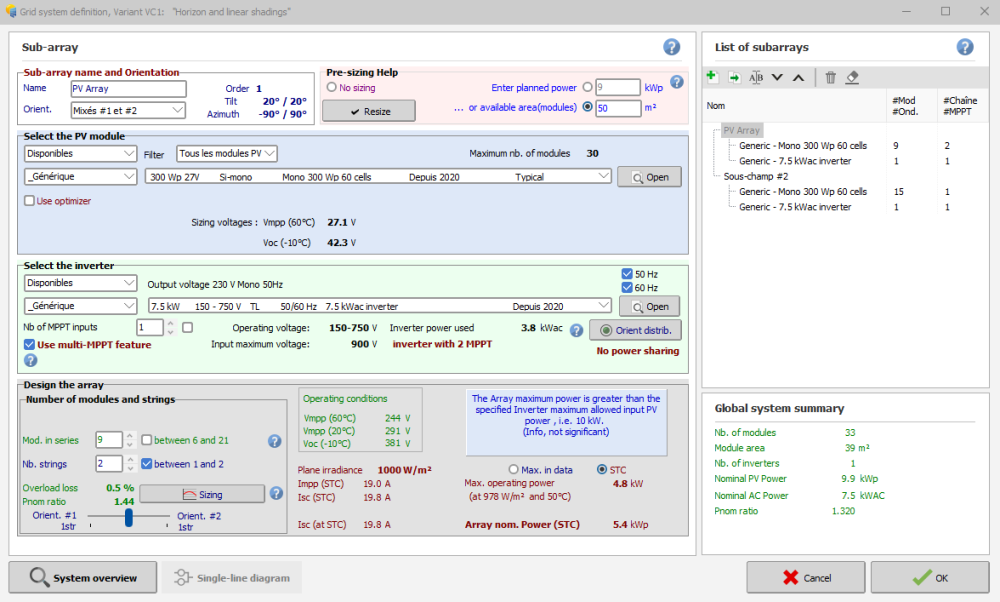

This will allow you to position three orientation on two MPPTs like the example below :

##### Share on other sites

If I understand well, you are using 2 strings with equal lenght (2 x 9).

My setup is different, 5 orientations with several string lenght.

Any chance to accomplish a realistic simulation of following:

##### Share on other sites

Dear Emi,

You can simulate virtually your entire project.

Attention it is not possible in PVsyst to mix two orientations with different lengths of strings.

I just made your system under PVsyst, you just need to make a little change in the naming of the orientations in order to simulate your system correctly.

##### Share on other sites

Thank you,

I understand that I can't simulate my system, correct?

##### Share on other sites

Dear Emi,

If you can, you should mix orientation 1 & 2 and then separate orientations 4 & 5.
Attention, its not at all conventional to put two strings of different length on a single MPPT input

##### Share on other sites

On 7/14/2023 at 4:15 PM, Lazare Fesnien said:

Attention, its not at all conventional to put two strings of different length on a single MPPT input

Ok, I know, then , for a correct simulation in PVSyst,

is it possible to use "optimizer" to connect modules with different orientations and connect them to a single MPPT?

More, using mixing orientation means to connect different orientations modules to the same MPPT?   This point it is not clear for me.

Many thanks

##### Share on other sites

Although it is possible to connect strings of modules in different orientations when using optimizers, this possibility is not yet available in PVsyst in the present time. ,

thanks a lot!
