Reactive power

said allaw

Recommended Posts

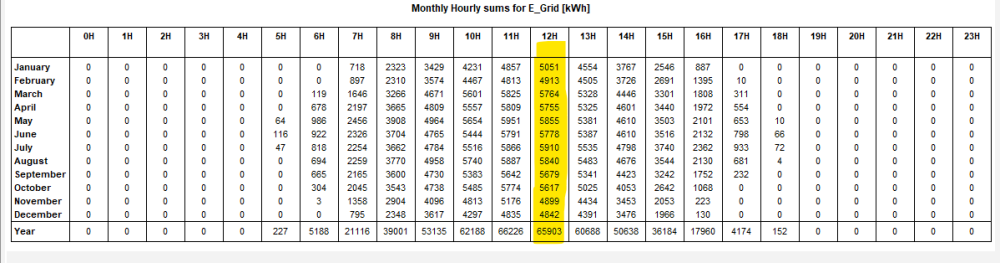

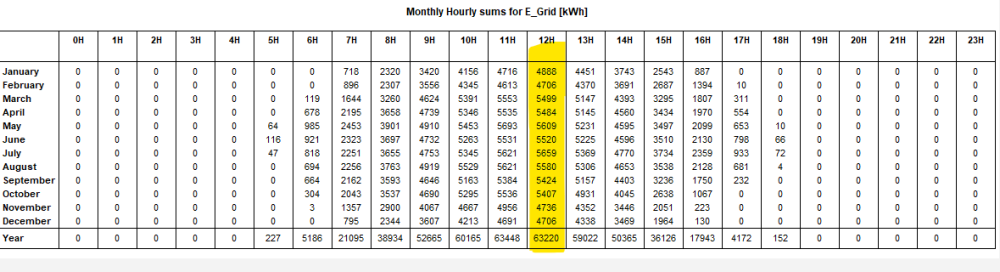

Dear Said Allaw,

The "Reactive power" is not a real electrical power: you cannot produce any movement or heat with it.

Reciprocally, the production of reactive power doesn't consume any "real" (active) energy.

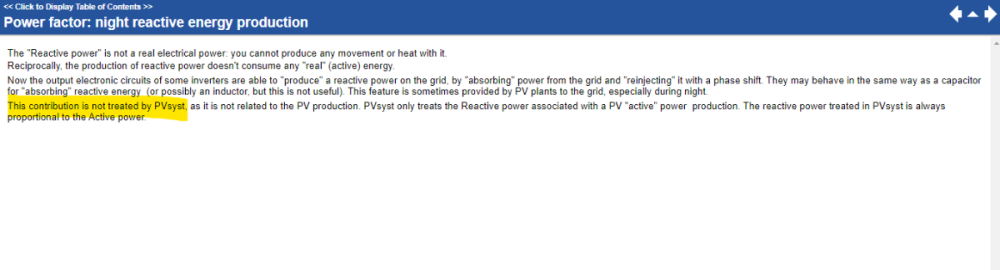

Now the output electronic circuits of some inverters are able to "produce" a reactive power on the grid, by "absorbing" power from the grid and "reinjecting" it with a phase shift. They may behave in the same way as a capacitor for "absorbing" reactive energy  (or possibly an inductor, but this is not useful). This feature is sometimes provided by PV plants to the grid, especially during night.

This contribution is not treated by PVsyst, as it is not related to the PV production. PVsyst only treats the Reactive power associated with a PV "active" power  production. The reactive power treated in PVsyst is always proportional to the Active power.


The operating value will depend on the available irradiance. This always produces the active power  (POutInv = Parray * inverter efficiency).

Now if you have defined a phase shift, the inverter will also produce a reactive  “power”  POutInv_R  = POutInv  * Sin(Phi).  But this doesn’t consume any additional power.
