Additional tracker shading losses in 6.1


jfish
 Share

Recommended Posts

I understand that in the 6.10 revision new shading losses for diffuse irradiation have been added for tracking systems. According to the FAQ http://forum.pvsyst.com/viewtopic.php?f=30&t=694post on this topic, it seams that this is the first time in any PVsyst version that tracking systems have included a system loss for the diffuse component. Since I have upgraded to the 6.10 version, I have the opportunity to compare the results from simulations run prior to 6.10 to those run with 6.10 and I have some questions and concerns.

I have found that in two example single axis horizontal tracking systems with backtracking, one in north-central US and one in southwest US, the "Near shadings: irradiance loss" that is now included in the loss diagram is -2.4% for the southwest site and -2.7% for the north-central site (all system details and losses were unchanged from 6.08 to 6.10). This is much higher than I expected from the explanation provided in the FAQ post. Both sites coincidentally have a 31% diffuse ratio (diffuse/GHI).

Why is this loss so high? For another example system I ran in 6.10 for a 25 degree fixed tilt system in the northeast US I only get a "Near shadings: irradiance loss" of -2.4% for a system with a higher GCR (46% vs. 33%) and a higher diffuse/GHI ratio (45%).

I am concerned that this new loss is a very significant change to prior versions of PVsyst and thus should be considered carefully. As someone who reviews many PVsyst reports from dozens of users on a regular basis I can say that this change presents a very significant challenge to the multitude of users of the PVsyst tool. There are hundreds of MW of tracking systems out there that were modeled in PVsyst prior to version 6.10 and hundreds more will continue to be modeled by users who have not upgraded. This presents a real challenge to people who analyze PVsyst reports and system performance issues. Is the suggestion that the industry no longer consider any tracking system production modeled prior to version 6.10 because they are erroneous?

Applying an additional >2% loss to our systems is not something that is good for the industry. We need to have full confidence in this change. We need to better understand how to apply this issue to systems modeled prior to 6.10. Millions of dollars are at stake with changes like this. How much confidence do we have in the new modeling method? Are there studies to support this change? Are there papers we can reference? Have third party firms reviewed this change?

PVsyst is an excellent tool and one I value very highly. I really appreciate all the work that goes into the creation and maintenance of this powerful tool. With the success of this tool comes a significant responsibility however so I would ask that major changes like this be supported with more transparency and support.

Thank you.

Jason Fisher

Charlottesville, Virginia, USA

Link to comment
Share on other sites

I understand your bewilderment.

With the PVsyst simulations, our objective is always to approach the reality at best. But this involves models, and models are never the reality.

Now PVsyst is considered by some people as a reference, and many assume that "this is the truth". This situation is quite independent on our willingness.

We never pretended to become such a reference, and we cannot assume any responsibility about the full reliability of the results in any case.

In particular, this should not prevent us to do modifications in the simulation, if we judge it necessary, even if it is not in accordance with previous simulations.

A software which doesn't evolve is dead.

In PVsyst, the estimation of the shading effects on the diffuse is a model. It is based on the hypothesis that the diffuse is isotropic, and performs an integral of the irradiance with shading factor over all directions of the sky vault "seen" by the collectors. A similar hypothesis and calculation is applied to the albedo contribution, involved in the transposition models.

This model is from my own, implemented in PVsyst since the beginning (1993). I proposed a research project for assessing this hypothesis by an experimental work, but I couldn't obtain financial support: this question didn't have any interest for anybody!

I don't know any publication studying the effect of shadings on the diffuse part. I don't know how this question is treated in other software. However this is a crucial question as it usually represents half of the shadings loss (or more) in most cases. If someone has some references, please communicate them to me.

The calculation of the tracking systems was introduced in PVsyst more than 10 years ago. The calculation of the shading on diffuse was treated in the same way as for the fixed planes, i.e. by integrating over the shading factor table. This was indeed an erroneous assumption, but I was not aware of that until about one year ago. Correcting this represented a not megligible work, that I just performed for the version 6.1. I could'nt guess that this would imply such a high loss before doing the full calculation (see our FAQ How is calculated the shading loss factor in tracking systems).

But this is quite plausible if you have a look on my publication "Optimization of row-arrangement in PV Systems, shading loss evaluations according to module positioning and connexions". This shows that in row arrangement the shading factor on diffuse is proportionnal to the plane tilt; then in tracking systems we have high tracker's tilts in the morning and the evening. Moreover the limit angle is usually rather high (increases with the tilt when the pitch is constant). The situation will still be worse with lower GCR, as when the distance between rows increases, the maximum tilt allowed by the backtracking will also increase.




Shading factor on diffuse in row arrangement, as computed with PVsyst hypothesis.

It is a geometrical characteristics, independent on the meteo data and site.



The loss is also due to the albedo contribution: the transposition model yields an albedo contribution proportionnal to (1 - cosi)/2 (i = tilt angle), with about 1% loss at 30° tilt, increasing more than linearly. This contribution is completely lost in big arrays: only the first row "sees" the albedo contribution.

NB: This calculation error appears essentially in the calculation of backtracking systems. The old calculation with "normal" tracking is much less affected: according to my first observations (to be confirmed) the result with the new calculation is rather similar to the old one: the shading factors (global of for each position) compensate each other.

NB: This work about shadings with tracking systems was undertaken after the publication "Increased Energy Production of First Solar Horizontal Single-axis Tracking PV Systems without Backtracking", Lauren Ngan and al, First Solar, San Francisco 94105.

Now the economical impact of such uncertainties in the simulations essentially acts on the previsions of the financial balance, not in the real yield. PVsyst has never created nor lost any kWh by itself !

This can have some implications on contracts, or technological choices like choosing Backtracking. However the backtracking choice may easily be reverted to "normal operation" without significant costs, if this appears to be better.

Link to comment
Share on other sites

Thanks Andre as usual for your well reasoned and thoughtful explanation of the good work you are doing with PVsyst. The intention of my original post is not to demand answers but rather to spark debate so I appreciate you adding to the discussion. My comments around the financial impact of these changes is (like it or not) based in the reality of our market right now. I completely understand your position that this is a modeling tool and not a tool to predict the future! The reality though is that the PV market only grows with the adoption of the technology by people who are not as familiar with these systems as you (who eclipses all of us with your knowledge), or I, or my good friend Marvin. Developers, investors, builders, owners, and maintenance firms all look to performance modeling tools for answers to the tricky question of how these systems are expected to perform. Those of us in the position of explaining these tools must be able to reduce a great deal of complexity into clear and defensible explanations of the inputs and outputs of these models. We need to have a high degree of faith in these tools and for me, that faith comes from understanding them as best I can.

That is what was on my mind when starting this thread, how do I explain this change? How do we discuss previous simulations? How accurate are these assumptions when compared to what we see in the field?

The same debate happens everyday with other simulation details whether they be on voltage drop, soiling, etc.

I realize that you cannot tell us what values are "true" and what are "false" but in this case, this change to the tool has produced a very significant change in the model's results which for me merits extra consideration and explanation.

Despite your very comprehensive and clear explanation I still have concerns over how the new algorithm is being applied. I would not attempt to challenge your equations but I would like to be able to understand the results better, and thus explain them better. Today I modeled a new horizontal tracking system in the northeast US. Using PVsyst v6.1 the simulation resulted in a -3.7% Near Shadings loss (0% loss reported in pre 6.1 versions). I then modeled a fixed tilt array of the same size and equipment, using the same Meteo resource and system losses. The 0 degree single axis tracker was 0.33 GCR and the fixed tilt array was 25 degree tilt and 0.43 GCR. Both were modeled in the 3D scene. The Tracker used backtracking and the fixed tilt modeled electrical losses according to strings. The result for the fixed tilt was -2.9% Near Shading losses. Lower losses than the backtracking single axis 0 degree tracking system.

I am still confused by this. It simply does not make intuitive sense to me. A backtracking horizontal tracking system spends a significant portion of the most productive part of the day and year at very low tilts, which based on the little I know about this subject would suggest that any diffuse losses would be extremely small during this time, just like when we model low tilt fixed tilt systems (i.e. 10-15 degrees). Furthermore when each tracking column is tilted (thus blocking some diffuse from it's neighbor) it is in the lower irradiance periods of the day when the total irradiation of both diffuse and beam is of lower total significance to the daily system production. In contrast a fixed tilt system has a geometry that never changes so diffuse irradiation blockage from neighboring sheds is an effect which occurs throughout the day. It just doesn't add up to me.

Another way to look at this question is by looking at the Global incident in the collector plane differences between these two systems. My GHI for this site was 1371 kWh/m2. The horizontal tracking system with backtracking added 25.1% to this value. The 25 degree fixed tilt (0 azimuth) added 15.0%. This is a difference of 10.1% additional irradiation of the tracker, marginal but understandable in this region. When I deduct the near shading losses of -2.9% for the fixed tilt and -3.7% for the tracker I now only get a incremental improvement of 9.3%, with all system losses I only see +9% energy harvest for horizontal tracking at this site. Incidentally at a second site I modeled in the desert southwest doing the same comparison using v6.10, I got similar results, near shading losses for the horizontal tracker were about 1% higher then they were for a fixed tilt system and the resulting net energy gain was about 19%. This is a lower gain than is typically seen in the field. Thus my concern. Is this tool becoming overly conservative?

I am not suggesting that PVsyst should remain static, I really appreciate the continuous improvement you have shown in the development of this tool. It is a great tool not just to model system production, but to explore various designs and even to illustrate complex PV theory. If my thread does spur some discussion and investigation into this effect, I might suggest that when planning major changes like this in the future, you consider launching them as a beta version for a period of time prior to full "upgrade". This would alert users to consider upgrading immediately more carefully. I know you give us the option of parallel installation and at times I have done that, that method does get messy though for file management. I admit I have formed a habit to routinely upgrade my PVsyst software since your fixes and improvements are much appreciated. This change caught me off guard and so I am now trying to develop faith that the tool is predicting the "most likely" performance of a tracking PV system, I will avoid using the term "most accurate"! ;)

Thanks for the discussion. I hope we can continue it.

Jason Fisher, Charlottesville, VA, USA

Link to comment
Share on other sites

I have tried to make clear that I am not asking for an explanation of the detailed algorithms and inter-functionality of the PVsyst tool, nor am I suggesting that this tool should be expected to be a tool to predict the future. I view it as counter productive to simplify this discussion to those points.

Let me more briefly summarize the important issues that I am trying to discuss in my previous posts on this subject:

1) A major change was made to the tool from version 6.08-6.10 (6.09 was immediately replaced by 6.1). By "major" I mean that it impacted previous simulations of tracking systems (at least the horizontal SA trackers I have modeled with 6.1) by between 2-3% in annual production. My personal feeling is that this version change should not have been released as an "upgrade", this change in shading modeling is a fundamental change from the original v6.0 release, not a bug fix, so in hindsight I feel that a parallel installation should have been encouraged at a minimum. This change has made it impossible to rerun any tracking simulation performed in any version prior to 6.10 without significant alterations to the original model. By making this comment I am trying to encourage the developers of PVsyst to consider these impacts for future changes. This is not a complaint forum so that is not what I am doing here.

2) The new losses for tracking systems labeled "Near shadings: irradiance loss" that account for adjacent row/column diffuse radiation shading seems rather high to me compared to other array geometries at the same geographic location, using the same meteo file, and the same system losses. I am not asking to see the formulas but rather am asking what we have as users of the tool to better understand this effect. Third party papers, studies, white papers, etc. are examples. The best would be one or more independent studies comparing these new PVsyst methods to other methods and better yet, actual field performance. As the industry has developed over the years, other issues have generated similar discussions and independent analysis of modeling software's assumptions, including PVsyst.

3) Numbers generated by PVsyst (and other tools though PVsyst is clearly the most widely used) are used by the market to assess the value of PV systems so as much as possible the industry should be aligned on these numbers. For this discussion the "accuracy" of this tool is relevant I feel. By "accuracy" I mean how well does it model arrays deployed in the field that match the variables as input in the tool and the meteorological conditions. In other words has someone seen the level of diffuse shading loss on backtracking single axis trackers that are now built into the tool? Most probability analysis performed by independent consultants hired by investors include uncertainty factors for irradiation and weather resources, but also for the modeling tool (perhaps 5% on average). Is there an argument to be made that these changes should now lower that uncertainty for the PVsyst tool? I think we all understand that there will be a range or error band to all energy modeling tools but as we know, investors tend to focus on worst case. Most people accept PVsyst based numbers a representing a P50 number. If our tools become overly conservative this will keep trending the value of PV systems lower. That is just a general comment by me that I ask others to consider, I do not have a particular ask of the developers other than to continue to support their users as much as possible to understand the numbers generated by the tool.

Jason Fisher, Charlottesville, VA, USA

Link to comment
Share on other sites

I have carefully checked the program and everything seems to be OK.

For a tilted single axis system, I have analysed a clear day and a cloudy one, and everything is quite coherent. It is interesting to observe that the albedo loss is of the same order of magnitude than the loss on diffuse, either on the clear day, and in the monthly results.

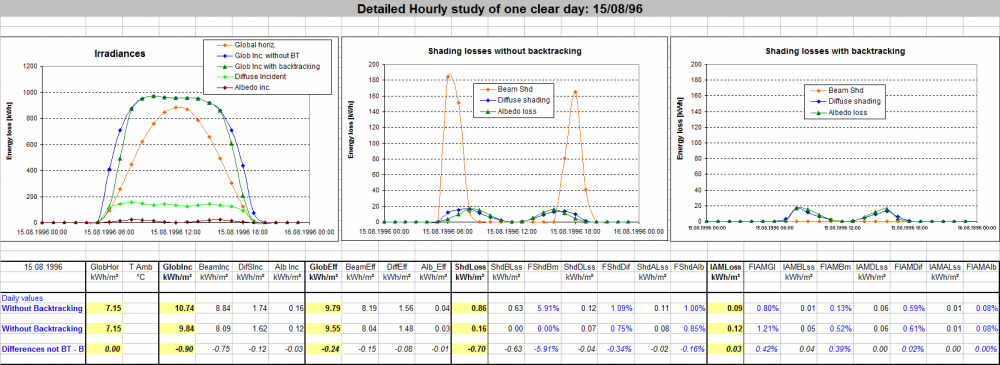

Clear day diffuse and albedo losses for Normal tracking and backtracking systems



I also have analysed the monthly and yearly values, and I observe that as expected, the Shading losses on diffuse and albedo, for normal system, are higher than the ones with backrracking.

I don't see a higher loss with backtracking, as reported by other users. If you have such data with single-axis projects, please send me the full project.

NB: for dual-axis systems, there are several backtracking strategies possible. Depending namely on the nechanical tracking system.

In PVsyst only one has been developed in the present time: keeping the tilt according to the sun's height, the backtracking is applied to the azimuth. In this mode (probably far from being optimal) the diffuse and albedo losses may be very high, and there is no reason that they are lower than with not-backtracking systems.

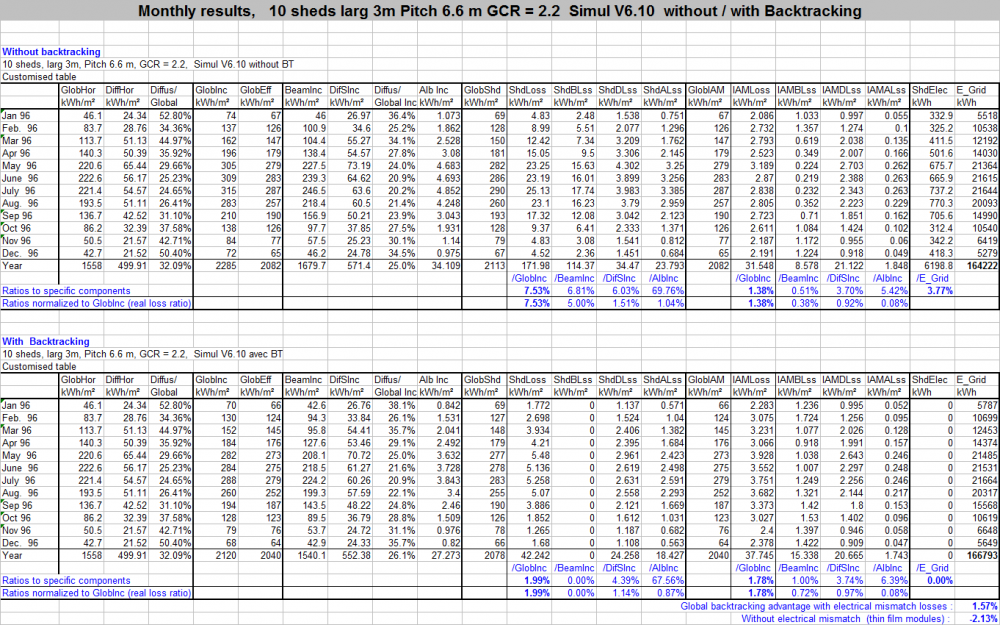

Global results for both tracking options. Detailed contributions of all components: Beam, Diffuse and Albedo.

Link to comment
Share on other sites

Interesting Andre, thank you.

Can you tell us what tilt this system was modeled at?

If tilted above 0 degrees from horizontal is it possible for you to analyze a zero-tilt (horizontal) single axis system as well?

Those are the systems I have been modeling that are giving me confusing results.

If this is a zero-tilt single axis then it appears that I am getting much different results. I would be happy to send you my models to analyze.

Jason Fisher

Charlottesville, VA USA

Link to comment
Share on other sites

  • 4 weeks later...

Hi Andre,

I have just completed the upgrade to 6.11 and see that we are again allowed to model single axis backtracking trackers using the simple orientation method and no longer are required to construct a 3D scene. When I just tried this I no longer see "Near Shadings: Irradiance Losses" in the report. It was my understanding that the previously discussed diffuse shading's losses added to version 6.10 reported these losses in this category of near shadings loss. Does this mean that diffuse shading losses are not calculated in 6.11 when not using the simple backtracking method (not constructing a 3D scene)? Are these diffuse shading losses only calculated for systems with 3D scene's constructed?

Jason Fisher

Charlottesville, VA USA

Link to comment
Share on other sites

  • 2 years later...

Nice inputs here.

I tried a tracker simulation using backtracking option for a site in Australia. I am seeing a near shading loss of 3.1% which is surprising. Please see below water fall loss diagram. Can you pls let me know what could be wrong here? I have done a very simple shading scene with out any additional shading objects. If you would like to check further i can share the project files pls let me know the mail ID I have to send it to.

Warm Rgrds,

Sanoj James




Link to comment
Share on other sites

  • 1 year later...

Hi Guys,

When enabling the back tracking in Single Axis Tracking and defining the 3D model, in version 6.60 I get 0 as shading loss while in versions above that I get 2.3% shading loss. This and the Global Incident in coll. plane makes non-back tracking strategy more favorable in versions above 6.60 in case of energy yield. Can you please explain?

Link to comment
Share on other sites
