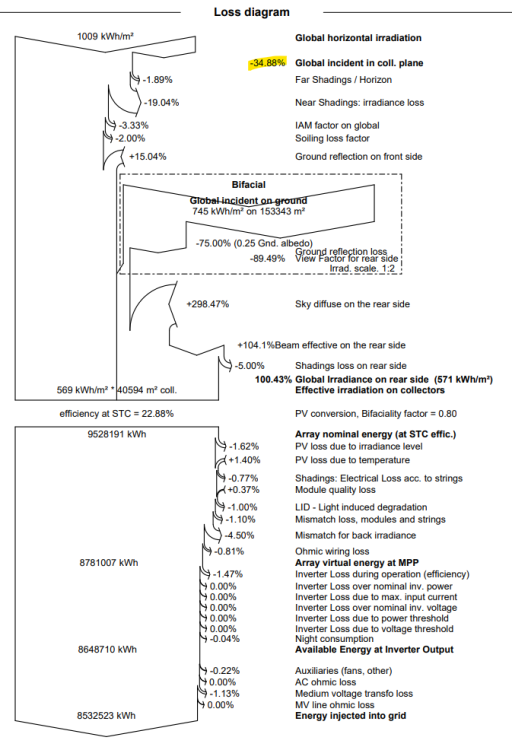

  1. Hello again, thank you very much for your answers! I have now done the following: For each cable segment I calculated the loss fraction: MVPS1-MVPS2: 0.07%. MVPS2-MVPS3: 0.06%. MVPS3-MVPS4: 0,09%. MVPS4 - feeding point: 1,48%. So the total loss fraction is 1.7%. I add this value to the detailed losses and assume that I have a transformer with a percentage value for the iron loss: 0.1% and for the copper losses: 1.0%. Is this correct? Thanks you
  2. Dear dtarin, thank you very much for your quick reply. I already know this procedure. I then enter the weighted average of the losses and only one transformer and add all the no-load and full-load losses of the transformers. Is this correct? I just wonder if it is also possible to calculate the weighted average of the lengths to run the simulation? Because in PVSyst, under detailed losses, you have the option to enter either the length of the wire or the loss fraction.
  3. Dear Muhammed, sorry, that was confusing. I didn't mean series connection in the electrical sense. But the four MVPS are connected in such a way that the segments between them carry different power. The first carries 1/4 of the total power, the second half, the third 3/4, and the last the total power. We want to calculate the total losses of the mv line, both for the mv lines between the transformers and for the mv line between the last MVPS and the feed point. Here are the lengths: MVPS1-MVPS2: 0.431 km MVPS2-MVPS3: 0.192 km MVPS3-MVPS4: 0.369 km MVPS4 - injection point: 7.84 km Best regards
  4. Hello, we are planning some MW plants with central inverters, more precisely medium voltage power stations combining inverter and medium voltage transformer. Now we want to calculate the MV line losses and we are not sure how to specify. In one project, we have four MVPS connected in series and then connected to the feeding point. We know the distances between the MVPSs and the distance to the feed point. How can we calculate the loss correctly? Should we use four transformers and the average length to the feed point? Or one transformer? Then what length do we need to insert? I hope that the question is understandable ... Thank you!
  5. Hello! I hope someone can help me with this issue: I have a multi MPPT inverter with 12 MPPT, each tracker has two inputs. How can I assign certain strings (same shading situation) to a tracker? I know that I can assign modules to strings in the module layout, but how can I assign these strings to an input of the inverter? Thanks a lot in advance! Janne
×
×
