Handling Tilt in Orientation and Near Shading Scene in PVSyst for Undulating Terrain

[Andrés Fernández]

Hello everyone,

I'm working on a PVSyst project where the terrain is undulating, which makes it challenging to define the tilt of the modules properly (for Orientation and near shading scene).

I've attached an example image to illustrate the case better. Any advice or references would be greatly appreciated.

https://waareeimages.s3.ap-south-1.amazonaws.com/energy_of_the_sun_and_convert_it_into_electricity_5a25f22d3d.jpg

Thanks in advance!

[dtarin]

PVsyst should calculate this automatically.

[Muhammed Sarikaya]

Dear Andrés,

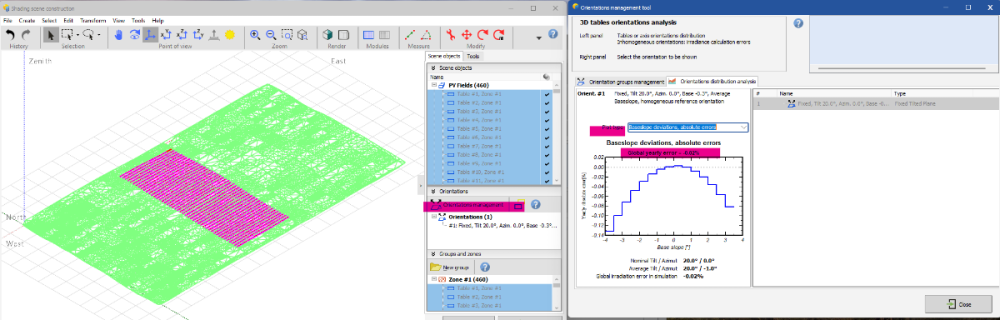

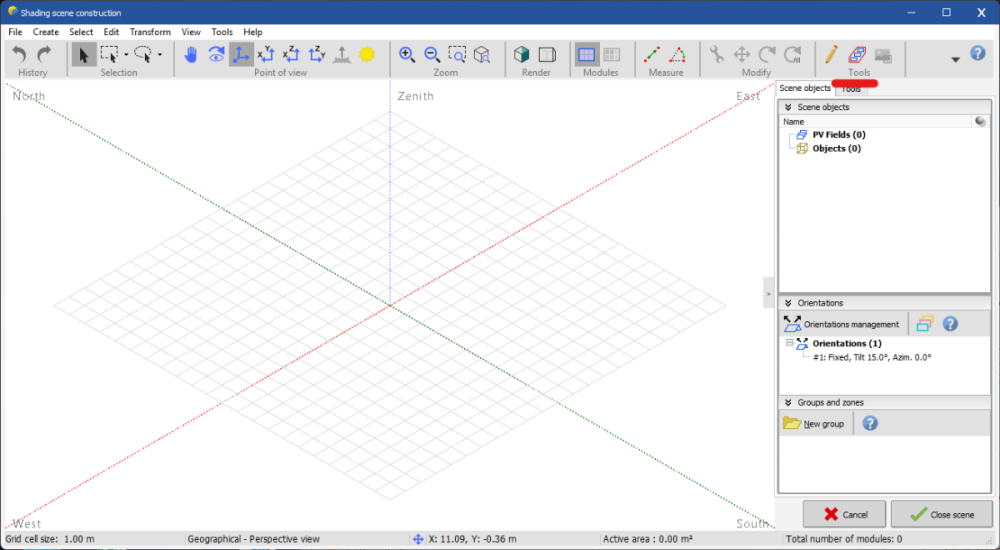

You can use the "Zone Tool" — see below how to access it:

Then, you can draw a zone where you place PV tables that follow the topography.
