SLD Button is Inactive

[Muhammad Faizan]

Dear Concern,

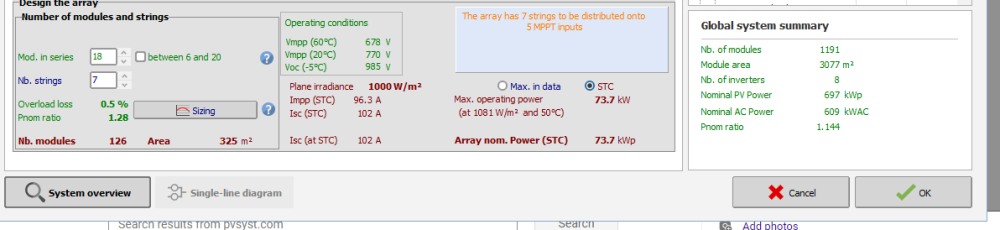

Could you guide me over the attached issue of SLD button which is inactive though it is active in some other previous projects of the same version of PV syst 7.4,

Edited February 26 by Muhammad Faizan

[Muhammed Sarikaya]

Dear Muhammad Faizen,



The reason the SLB (Single Line Diagram) button is inactive is due to the illogical distribution of your modules across the MPPT (Maximum Power Point Tracking) inputs. You are attempting to distribute 7 strings across 5 MPPT inputs. While you can proceed with the simulation, you won't be able to open the "Single Line Diagram".

Regards,

Muhammed Sarikaya

[Muhammad Faizan]

9 hours ago, Muhammed Sarikaya said:

Thank you for your response, but please tell me that how it could be illogical, just need to know so that i can make my mistake correct.



[Muhammed Sarikaya]

Dear Muhammad,



I think you haven't activated 'power sharing' because the buttons in the single-line diagram are not active. Could you please share a complete screenshot of your windows? That way, I can understand better why you're experiencing this problem.
