different strings orientation for the same inverter

[MARCOZ15]

Hi everyone!

I have 2 strings:

1) east orientation (17 panels)

2) west orientation (13 panels)

Only one inverter for both strings.

How can i solve this?



Thanks!



[Muhammed Sarikaya]

Dear Marcoz15



It's very simple; first, you need to select "Orientation" and choose the field type as "Several orientations," as shown in this image:


Then, when configuring the system, there are a few things you need to be careful about:

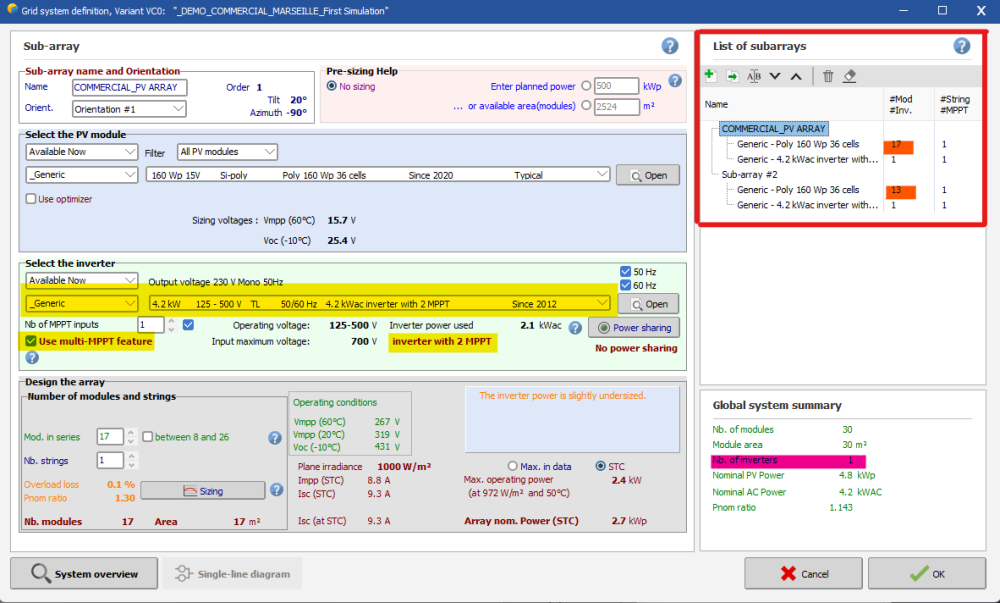

In the "List of subarrays," you should create two subarrays. When selecting your inverter, make sure it has a minimum of 2 MPPTs. Activate the multi-MPPT feature, and don't forget to assign the orientation for each subarray.

Does that make it clearer?




Regards,

Muhammed Sarikaya
