Hello. I usually use 3d batch shading to simulate power generation efficiency. At this time, select the fixed Tilted Plane on the direction tab to recognize the module angle on the 3d layout drawing. In fact, the way I deploy it is more like an unlimited-sheds type. 1. Please tell me how to get a 3d module layout and set the direction to an unlimited table type when conducting simulation. 2. If you use an unlimited sheds type in the direction, What should I do if there are multiple pitches?

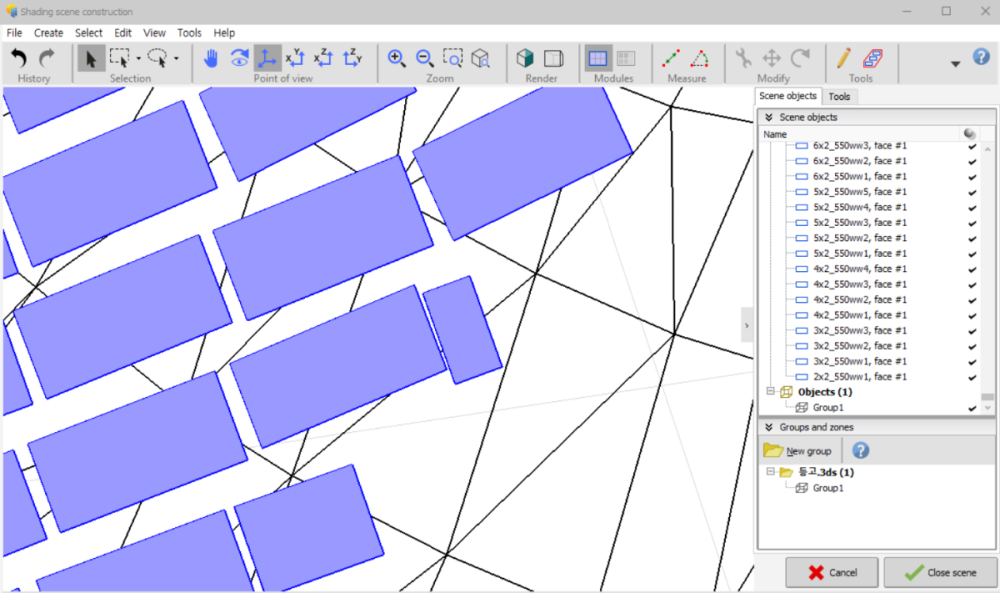

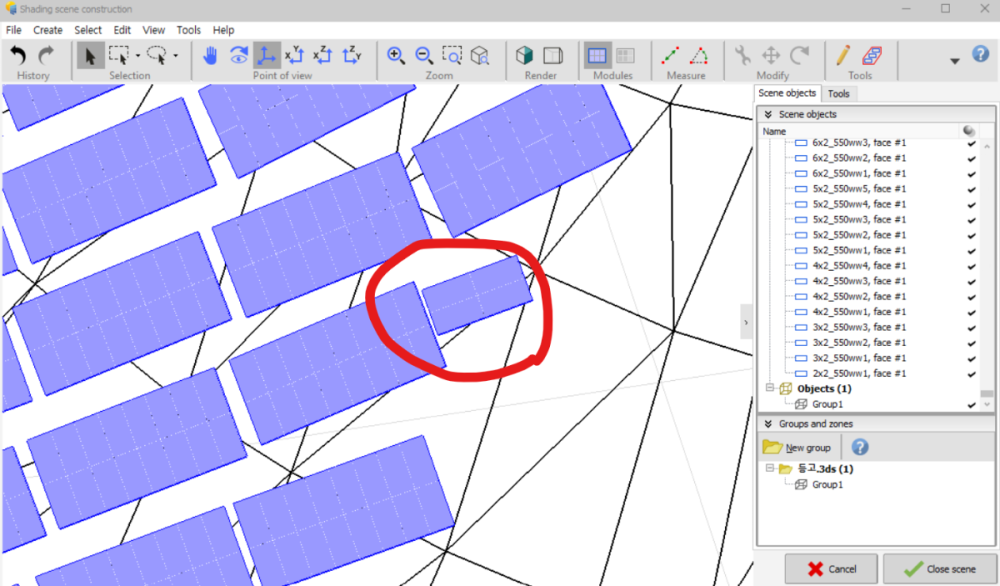

Hi. After importing the modules I made into a 3D module placement into a 3DS file, the modification of the object determines the number of modules horizontally and vertically, but how can I solve the problem when the module angle turns as shown in the picture above?

Modules installed on flat terrain have one orientation, making it easy to simulate. However, modules installed on uneven terrain have more than one direction and module angle, so you need to set multiple directions, but I don't know how. I would appreciate it if you could explain how to simulate the installed module according to the shape of the terrain.

Hello. I'm using pvsyst very well. When I want to know the amount of power generation, there's a shadow around the terrain like a wind generator, Can't you insert this into the 3D module layout to obtain the amount of power generated by shading? Drawing obstacles in SKETCHUP does not run import into the 3D module layout.

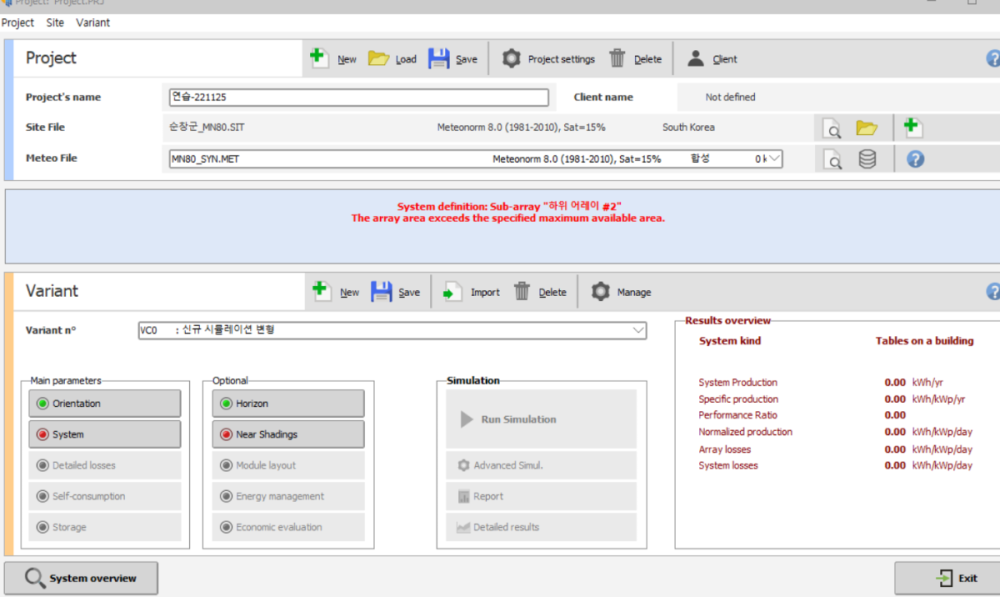

1. Multiple orientations were established when the module array was placed on top of the terrain. It says to apply subarrays in each direction, can you apply multiple directions to one array? 2.When I pressed Update Directional Parameters, another error window appeared as shown below. How do I solve this?

Multiple orientations were established when the module array was placed on top of the terrain. It says to apply subarrays in each direction, can you apply multiple directions to one array?

Hello. I wanted to know the power generation time in the area with mountainous terrain in the east, so I drew the topography and module layout in 3D. Can you tell me the total power generation time during the day?

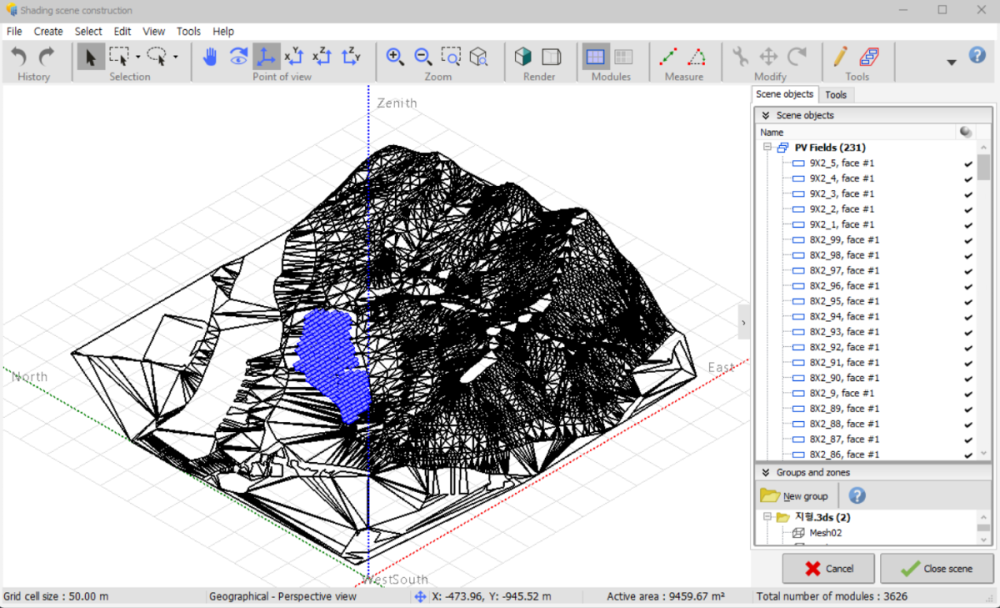

Hello. In sketchup, the terrain and module were exported to 3ds file and imported from pvsyst The terrain is imported well, but there is no response when the module is imported. Please let me know if it is an error or if the setting is wrong.

Hello. The topography was drawn in the sketchup and the module angle was arranged equally at 18 degrees When I imported the 3D file in pvsyst, the directions are defined as seven, and it says to apply subarray for each direction. It's hard to tell them to configure the same array with different arrays. How do I solve this? Orientation parameters Field type: Several orientations 4 orientations: Tilt/azim = 18°/6°, 18°/12°, 19°/14°, 18°/2° Compatibility between System and Shadings Orientation #1 tilt/azim = 18° / 6° 1 sub-array PNom = 1657 kWp, modules area = 7853 m² shading 3D fields 189 tables, : , total rough area , . 7816 m² Orientation #2 tilt/azim = 18° / 12° 1 sub-array PNom = 183 kWp, modules area = 868 m² shading 3D fields 20 tables, : , total rough area , . 819 m² Orientation #2: The modules area defined in the 3D scene is slightly lower than the modules area defined in the system. Orientation #3 tilt/azim = 19° / 14° 1 sub-array PNom = 17 kWp, modules area = 83 m² shading 3D fields 2 tables, : , total rough area , . 83 m² Orientation #4 tilt/azim = 18° / 2° 1 sub-array PNom = 130 kWp, modules area = 615 m² shading 3D fields 16 tables, : , total rough area , . 657 m² System parameters 4 sub-arrays defined Sub-array #1 하위 어레이 #1 Orientation #1 Tilt/Azimuth = 18.1° / 6.2° PV modules: 190 strings of 16 modules in series, 3040 total Pnom = 545 Wp Pnom array = 1657 kWp, Area = 7853 m² Inverters (60.0 kWac) 1 MPPT inputs, Total 1320 k Sub-array #2 하위 어레이 #2 Orientation #2 Tilt/Azimuth = 18.4° / 12.4° PV modules: 21 strings of 16 modules in series, 336 total Pnom = 545 Wp Pnom array = 183 kWp, Area = 868 m² Inverters (60.0 kWac) 1 MPPT inputs, Total 180 kW The array area exceeds the specified maximum available area. Sub-array #3 하위 어레이 #3 Orientation #3 Tilt/Azimuth = 18.6° / 14.3° PV modules: 2 strings of 16 modules in series, 32 total Pnom = 545 Wp Pnom array = 17 kWp, Area = 83 m² Inverters (60.0 kWac) 1 MPPT inputs, Total 60 kWa The inverter power is strongly oversized. Sub-array #4 하위 어레이 #4 Orientation #4 Tilt/Azimuth = 18.0° / 1.7° PV modules: 14 strings of 17 modules in series, 238 total Pnom = 545 Wp Pnom array = 130 kWp, Area = 615 m² Inverters (60.0 kWac) 1 MPPT inputs, Total 120 kW 3D shadings parameter 227 fields defined Total area 9376 m² Field #1: table 9X2_5, face #1 Total area = 47.0 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #2: table 9X2_4, face #1 Total area = 47.0 m² Orientation #2 Tilt/Azimuth = 18.3° / 10.0° Field #3: table 9X2_3, face #1 Total area = 47.0 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #4: table 9X2_2, face #1 Total area = 47.0 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.6° Field #5: table 9X2_1, face #1 Total area = 47.0 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.7° Field #6: table 8X2_99, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.6° Field #7: table 8X2_98, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.6° Field #8: table 8X2_97, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 4.6° Field #9: table 8X2_96, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 4.3° Field #10: table 8X2_95, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 4.9° Field #11: table 8X2_94, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.7° Field #12: table 8X2_93, face #1 Total area = 41.7 m² Orientation #3 Tilt/Azimuth = 18.6° / 14.4° Field #13: table 8X2_92, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.5° Field #14: table 8X2_91, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #15: table 8X2_90, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #16: table 8X2_9, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.1° Field #17: table 8X2_89, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.1° Field #18: table 8X2_88, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.1° Field #19: table 8X2_87, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.3° Field #20: table 8X2_86, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 4.9° Field #21: table 8X2_85, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #22: table 8X2_84, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.1° Field #23: table 8X2_83, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #24: table 8X2_82, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.6° Field #25: table 8X2_81, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #26: table 8X2_80, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #27: table 8X2_8, face #1 Total area = 41.7 m² Orientation #4 Tilt/Azimuth = 18.0° / 0.0° Field #28: table 8X2_79, face #1 Total area = 41.7 m² Orientation #2 Tilt/Azimuth = 18.5° / 12.7° Field #29: table 8X2_78, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #30: table 8X2_77, face #1 Total area = 41.7 m² Orientation #2 Tilt/Azimuth = 18.5° / 12.7° Field #31: table 8X2_76, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #32: table 8X2_75, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #33: table 8X2_74, face #1 Total area = 41.7 m² Orientation #4 Tilt/Azimuth = 18.0° / 1.8° Field #34: table 8X2_73, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #35: table 8X2_72, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #36: table 8X2_71, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.0° / 4.0° Field #37: table 8X2_70, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 4.6° Field #38: table 8X2_7, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #39: table 8X2_69, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.0° / 4.0° Field #40: table 8X2_68, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.1° Field #41: table 8X2_67, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 4.3° Field #42: table 8X2_66, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.0° / 4.0° Field #43: table 8X2_65, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.0° / 4.0° Field #44: table 8X2_64, face #1 Total area = 41.7 m² Orientation #4 Tilt/Azimuth = 18.0° / 1.8° Field #45: table 8X2_63, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #46: table 8X2_62, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #47: table 8X2_61, face #1 Total area = 41.7 m² Orientation #4 Tilt/Azimuth = 18.0° / 2.2° Field #48: table 8X2_60, face #1 Total area = 41.7 m² Orientation #4 Tilt/Azimuth = 18.0° / 2.2° Field #49: table 8X2_6, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.3° Field #50: table 8X2_59, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.0° / 4.0° Field #51: table 8X2_58, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.0° / 4.0° Field #52: table 8X2_57, face #1 Total area = 41.7 m² Orientation #4 Tilt/Azimuth = 18.0° / 2.5° Field #53: table 8X2_56, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.0° / 4.0° Field #54: table 8X2_55, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #55: table 8X2_54, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.7° Field #56: table 8X2_53, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.1° Field #57: table 8X2_52, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.6° Field #58: table 8X2_51, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.7° Field #59: table 8X2_50, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #60: table 8X2_5, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #61: table 8X2_49, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #62: table 8X2_48, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #63: table 8X2_47, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #64: table 8X2_46, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #65: table 8X2_45, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #66: table 8X2_44, face #1 Total area = 41.7 m² Orientation #2 Tilt/Azimuth = 18.5° / 12.7° Field #67: table 8X2_43, face #1 Total area = 41.7 m² Orientation #2 Tilt/Azimuth = 18.5° / 12.7° Field #68: table 8X2_42, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #69: table 8X2_41, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #70: table 8X2_40, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #71: table 8X2_4, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.5° Field #72: table 8X2_39, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #73: table 8X2_38, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #74: table 8X2_37, face #1 Total area = 41.7 m² Orientation #2 Tilt/Azimuth = 18.4° / 11.5° Field #75: table 8X2_36, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #76: table 8X2_35, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #77: table 8X2_34, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.1° Field #78: table 8X2_33, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.5° Field #79: table 8X2_32, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.3° Field #80: table 8X2_31, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #81: table 8X2_30, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.7° Field #82: table 8X2_3, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #83: table 8X2_29, face #1 Total area = 41.7 m² Orientation #2 Tilt/Azimuth = 18.5° / 12.7° Field #84: table 8X2_28, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.6° Field #85: table 8X2_27, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #86: table 8X2_26, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.5° Field #87: table 8X2_25, face #1 Total area = 41.7 m² Orientation #2 Tilt/Azimuth = 18.5° / 12.7° Field #88: table 8X2_24, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #89: table 8X2_23, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.6° Field #90: table 8X2_22, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.3° Field #91: table 8X2_21, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.5° Field #92: table 8X2_208, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #93: table 8X2_207, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 4.6° Field #94: table 8X2_206, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #95: table 8X2_205, face #1 Total area = 41.7 m² Orientation #2 Tilt/Azimuth = 18.5° / 12.7° Field #96: table 8X2_204, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #97: table 8X2_203, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.5° Field #98: table 8X2_202, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #99: table 8X2_201, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #100: table 8X2_200, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.1° Field #101: table 8X2_20, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #102: table 8X2_2, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #103: table 8X2_199, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #104: table 8X2_198, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #105: table 8X2_197, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.1° Field #106: table 8X2_196, face #1 Total area = 41.7 m² Orientation #2 Tilt/Azimuth = 18.5° / 12.7° Field #107: table 8X2_195, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.5° Field #108: table 8X2_194, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.1° Field #109: table 8X2_193, face #1 Total area = 41.7 m² Orientation #3 Tilt/Azimuth = 18.6° / 14.2° Field #110: table 8X2_192, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.5° Field #111: table 8X2_191, face #1 Total area = 41.7 m² Orientation #2 Tilt/Azimuth = 18.4° / 12.4° Field #112: table 8X2_190, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.5° Field #113: table 8X2_19, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #114: table 8X2_189, face #1 Total area = 41.7 m² Orientation #4 Tilt/Azimuth = 18.0° / 3.1° Field #115: table 8X2_188, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #116: table 8X2_187, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.1° Field #117: table 8X2_186, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.6° Field #118: table 8X2_185, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.7° Field #119: table 8X2_184, face #1 Total area = 41.7 m² Orientation #4 Tilt/Azimuth = 18.0° / 1.8° Field #120: table 8X2_183, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.3° Field #121: table 8X2_182, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.7° Field #122: table 8X2_181, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #123: table 8X2_180, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #124: table 8X2_18, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #125: table 8X2_179, face #1 Total area = 41.7 m² Orientation #4 Tilt/Azimuth = 18.0° / 1.8° Field #126: table 8X2_178, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #127: table 8X2_177, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.7° Field #128: table 8X2_176, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #129: table 8X2_175, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.7° Field #130: table 8X2_174, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.6° Field #131: table 8X2_173, face #1 Total area = 41.7 m² Orientation #4 Tilt/Azimuth = 18.0° / 2.5° Field #132: table 8X2_172, face #1 Total area = 41.7 m² Orientation #4 Tilt/Azimuth = 18.0° / 0.0° Field #133: table 8X2_171, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.1° Field #134: table 8X2_170, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #135: table 8X2_17, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.0° / 4.0° Field #136: table 8X2_169, face #1 Total area = 41.7 m² Orientation #4 Tilt/Azimuth = 18.0° / 1.8° Field #137: table 8X2_168, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.0° / 3.7° Field #138: table 8X2_167, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #139: table 8X2_166, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.3° Field #140: table 8X2_165, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.0° / 3.4° Field #141: table 8X2_164, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 4.6° Field #142: table 8X2_163, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #143: table 8X2_162, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.7° Field #144: table 8X2_161, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #145: table 8X2_160, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #146: table 8X2_16, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.2° Field #147: table 8X2_159, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #148: table 8X2_158, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 4.3° Field #149: table 8X2_157, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.3° Field #150: table 8X2_156, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #151: table 8X2_155, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.1° Field #152: table 8X2_154, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.7° Field #153: table 8X2_153, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.0° / 4.0° Field #154: table 8X2_152, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.0° / 4.0° Field #155: table 8X2_151, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.0° / 3.4° Field #156: table 8X2_150, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #157: table 8X2_15, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.1° Field #158: table 8X2_149, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #159: table 8X2_148, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.6° Field #160: table 8X2_147, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #161: table 8X2_146, face #1 Total area = 41.7 m² Orientation #4 Tilt/Azimuth = 18.0° / 2.8° Field #162: table 8X2_145, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #163: table 8X2_144, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.1° Field #164: table 8X2_143, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #165: table 8X2_142, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.3° Field #166: table 8X2_141, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.5° Field #167: table 8X2_140, face #1 Total area = 41.7 m² Orientation #4 Tilt/Azimuth = 18.0° / 0.0° Field #168: table 8X2_14, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.3° Field #169: table 8X2_139, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.6° Field #170: table 8X2_138, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 4.6° Field #171: table 8X2_137, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #172: table 8X2_136, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.5° Field #173: table 8X2_135, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #174: table 8X2_134, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #175: table 8X2_133, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 4.9° Field #176: table 8X2_132, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.2° Field #177: table 8X2_131, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.1° Field #178: table 8X2_130, face #1 Total area = 41.7 m² Orientation #2 Tilt/Azimuth = 18.5° / 12.7° Field #179: table 8X2_13, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #180: table 8X2_129, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.7° Field #181: table 8X2_128, face #1 Total area = 41.7 m² Orientation #2 Tilt/Azimuth = 18.5° / 12.7° Field #182: table 8X2_127, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #183: table 8X2_126, face #1 Total area = 41.7 m² Orientation #4 Tilt/Azimuth = 18.0° / 2.8° Field #184: table 8X2_125, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.3° Field #185: table 8X2_124, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.2° Field #186: table 8X2_123, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #187: table 8X2_122, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #188: table 8X2_121, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #189: table 8X2_120, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #190: table 8X2_12, face #1 Total area = 41.7 m² Orientation #2 Tilt/Azimuth = 18.4° / 11.2° Field #191: table 8X2_119, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.5° Field #192: table 8X2_118, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 4.9° Field #193: table 8X2_117, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.5° Field #194: table 8X2_116, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.3° Field #195: table 8X2_115, face #1 Total area = 41.7 m² Orientation #2 Tilt/Azimuth = 18.5° / 12.7° Field #196: table 8X2_114, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #197: table 8X2_113, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #198: table 8X2_112, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.1° Field #199: table 8X2_111, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #200: table 8X2_110, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #201: table 8X2_11, face #1 Total area = 41.7 m² Orientation #2 Tilt/Azimuth = 18.5° / 12.7° Field #202: table 8X2_109, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #203: table 8X2_108, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #204: table 8X2_107, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #205: table 8X2_106, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #206: table 8X2_105, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.2° Field #207: table 8X2_104, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #208: table 8X2_103, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #209: table 8X2_102, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.1° Field #210: table 8X2_101, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.2° Field #211: table 8X2_100, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #212: table 8X2_10, face #1 Total area = 41.7 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.5° Field #213: table 8X2_1, face #1 Total area = 41.7 m² Orientation #2 Tilt/Azimuth = 18.5° / 12.7° Field #214: table 7X2_7, face #1 Total area = 36.5 m² Orientation #1 Tilt/Azimuth = 18.0° / 4.0° Field #215: table 7X2_6, face #1 Total area = 36.5 m² Orientation #2 Tilt/Azimuth = 18.5° / 12.7° Field #216: table 7X2_5, face #1 Total area = 36.5 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #217: table 7X2_4, face #1 Total area = 36.5 m² Orientation #1 Tilt/Azimuth = 18.1° / 7.0° Field #218: table 7X2_3, face #1 Total area = 36.5 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #219: table 7X2_2, face #1 Total area = 36.5 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.8° Field #220: table 7X2_1, face #1 Total area = 36.5 m² Orientation #2 Tilt/Azimuth = 18.5° / 12.7° Field #221: table 6X2_4, face #1 Total area = 31.3 m² Orientation #1 Tilt/Azimuth = 18.1° / 5.2° Field #222: table 6X2_3, face #1 Total area = 31.3 m² Orientation #2 Tilt/Azimuth = 18.3° / 10.0° Field #223: table 6X2_2, face #1 Total area = 31.3 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.3° Field #224: table 6X2_1, face #1 Total area = 31.3 m² Orientation #4 Tilt/Azimuth = 18.0° / 2.2° Field #225: table 5X2_3, face #1 Total area = 26.1 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.4° Field #226: table 5X2_2, face #1 Total area = 26.1 m² Orientation #1 Tilt/Azimuth = 18.2° / 7.6° Field #227: table 5X2_1, face #1 Total area = 26.1 m² Orientation #1 Tilt/Azimuth = 18.1° / 6.1° Orientation #1 189 tables, Area = 7816 m² Orientation #2 20 tables, Area = 819.2 m² Orientation #3 2 tables, Area = 83.48 m² Orientation #4 16 tables, Area = 657.4 m² 신규 시뮬레이션 변형 List of other shading objects Obstacle #-227 Mesh02 Obstacle #-227 Mesh01 Use in simulation: Linear shadings (Irradiance deficit)
