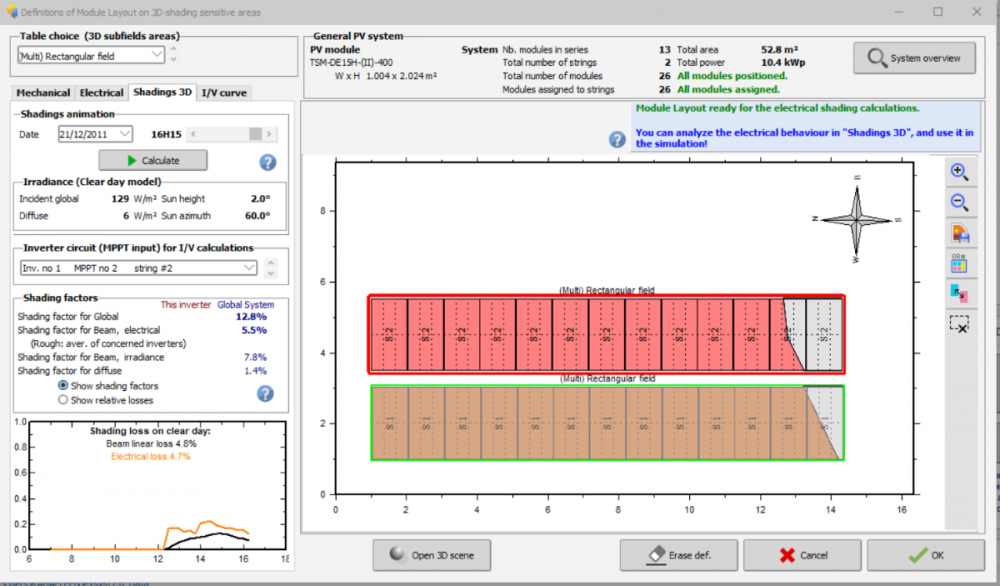

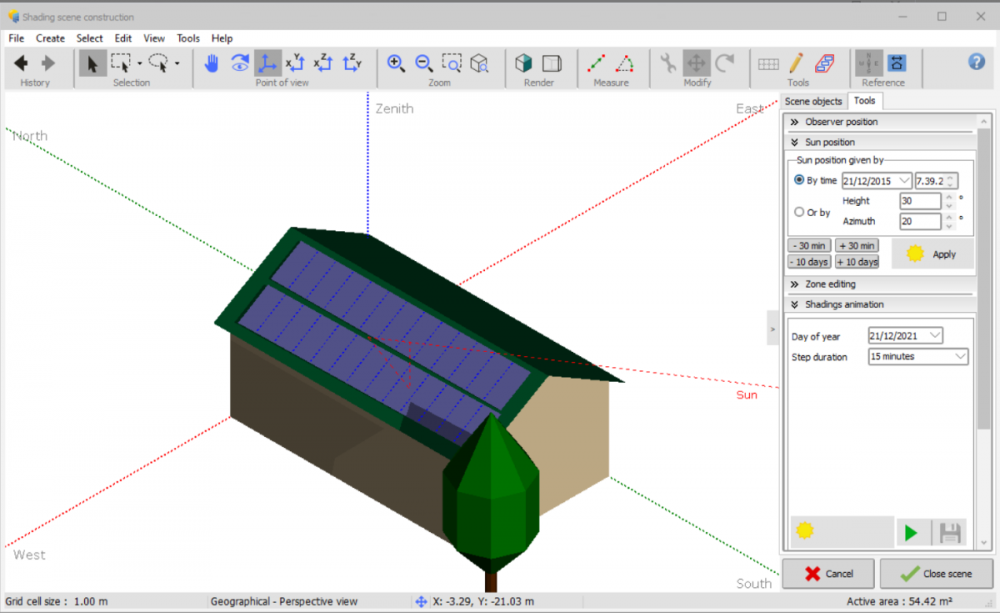

The two strings are clearly on separate MPPT inputs, and both strings are not partially shaded. the shading is made just for PV string 1 and the another string 2 is free of shading but the system still gives electrical loss for it !!! The time is the same for 3D editor and Module layout which is 21/12/2011. It is very strange that why PVsyst considers the system as one MPPT . Please can you give explanation about that ?

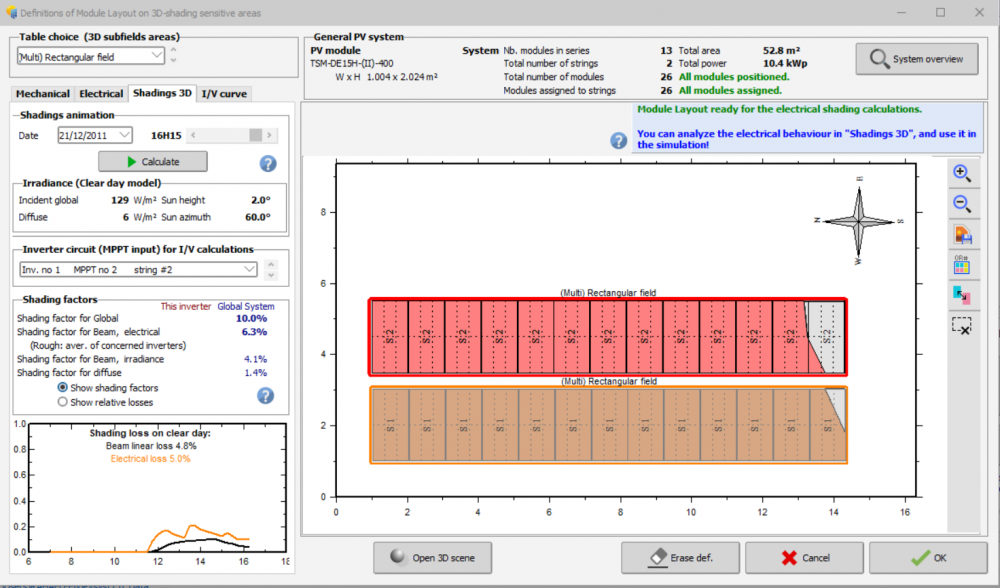

Hi, It seems that PVsyst has wrong assumption but I hope to finds an answer from PVsyst team for my question I have system of 10.4 KWp and inverter of 10KW. The system consists of 2 PV strings and the inverter has 2 MPPTs , which means each PV strings will be connected to one MPPT. I have made shadow on one PV string caused by tree and another PV string is free of shading. Now in Module layout when I want to see the shading losses for each string, it seems PVsyst consider the system as one MPPT because PVsyst gives me 5% of electrical loss for unshaded PV string and this clearly wrong for the calculation and final results. Now my question, Why PVsyst gives me 5% as electrical loss for unshaded PV string? is it wrong assumption ?

Hi folks I hope to find the interest in my question I am wondering if there is an error in PVsyst regarding the calculation of ohmic losses !! I have a system of 111 KWp with an inverter of 100 KW Huawei. The system consists of 15 PV strings connected to MPPTs Huawei Inverter. The Inverter has 10 MPPTs, each MPPT has 2 inputs, which means that the strings will be attributed on MPPTs of the inverter and there is no parallel-connected strings. Now my direct question is related to the Ohmic losses . In PVsyst there are just two options in the wiring layout: 1- Parallel strings 2- Groups of parallel strings I am wondering How can I choose that every string is connected directly to the inverter (in my case I don't need a combiner box) without having a combiner box? How can I choose a case that I have just PV strings are connected directly to MPPTs inverter without having combiner box, because the cable size would be 6 mm2 but PVsyst doesn't give me that option?

Thanks brother

Hi folks Regarding to ohmic losses. I have system consists of 120Kwp (PV modules) and 100KW inverter power. The system consists of 18 PV strings , 18 PV modules per string. I want to connect directly 18 strings on 10 MPPTs/20 Inputs , which means that I don't need combiner box in the system. Now for ohmic losses , PVsyst define combiner box for the calculations and there is no option to skip it . My question , how I can calculate the power loss if I have for example 18 PV strings connected directly to the Inverter MPPTs inputs without combiner box in PVsyst ? ?

Hi, IS there any solution for this problem ?

Hi, I have simple question which confused me a lot What is the difference between Fixed tilted plane and unlimited sheds in PVsyst ? in PVsyst help document, it mentioned for unlimited sheds that "the sheds are very long with respect to their width", so what does it mean also in this case by this sentence?

Thank you

Thank you so much

Hi, I understood that I must choose one out of these two options "planned power and available area" , but my problem is that, if I have choose as an example "available area" which refers to the PV modules area (without considering the tilt angle and the distances between the PV modules rows) , then in this case How I can estimate this option based on my building area? in simple words for example in Helioscope software (just an example to explain my case) , you define specific buidling area then the software set directly the PV modules based on available building area ,defined tilt angle and rows distances . Now if we compare this to PVsyst , how I can do the same logic ?

Hi Basson, Thank you for your explanation! I understood that I must choose one out of these two options "planned power and available area" , but my problem is that, if I have choose as an example "available area" which refers to the PV modules area (without considering the tilt angle and the distances between the PV modules rows) , then in this case How I can estimate this option based on my building area? in simple words for example in Helioscope software , you define specific area then the software set the PV modules based on available building area ,defined tilt angle and rows distances . now if we compare this to PVsyst , how I can do the same logic ?

Hi, I asked this question 2 times and this is the third . Hopefully, I can get help from PVsyst team The problem as follows: For Grid-connected PV system, in "pre-sizing help" there are two options as shown in the figure First option: "enter planned power" Second option : "available area (modules)". Now let's assume that I want to install a PV system in specific location that have specific building area , Let's assume that I will choose the first option "enter Planned power" . My question is : How can I now that the entered power is suitable for specified building area ? in other words what is the relationship here between the area of the building and the entered Power?? Also , if I choose another option "available area (modules)" . this area is related to the area on PV modules which is not related to the area on the location based on that , How can I define suitable "available area (modules)" to be suitable for the building area ??

Hi, I have asked here in this forum a lot of questions , but unfortunately I didn't get any help or answer from PVsyst team or from other colleagues. Hopefully, I can get help for my question this time . Please can anyone explain to me this matter in PVsyst because I lost?? The problem as follows: In Grid-connected PV system, in "system window" , then in "pre-sizing help" there are two options as shown in the figure "enter planned power" and another option is "available area (modules)". Now let's assume that I want to install PV system in specific location that have specific building area as an example "3472 m2". Now in this case if I want to choose the first option "enter Planned power" . The question is How can I now that the entered power is suitable for this area ??? what is the relationship here between the area of the building and the entered Power?? Also , if I choose another option "available area (modules)" . this area related to the area on PV modules which is not related to the area on the location. How can I define suitable "available area (modules)" based on the location area ??

Hi, I have asked here in this forum a lot of questions , but unfortunately I didn't get any help or answer from PVsyst team or from other colleagues. Hopefully, I can get help for my question this time . Please can anyone explain to me this matter in PVsyst because I lost?? The problem as follows: In Grid-connected PV system, in "system window" , then in "pre-sizing help" there are two options as shown in the figure "enter planned power" and another option is "available area (modules)". Now let's assume that I want to install PV system in specific location that have specific building area as an example "3472 m2". Now in this case if I want to choose the first option "enter Planned power" . The question is How can I now that the entered power is suitable for this area ??? what is the relationship here between the area of the building and the entered Power?? Also , if I choose another option "available area (modules)" . this area related to the area on PV modules which is not related to the area on the location. How can I define suitable "available area (modules)" based on the location area ??

Hi, I have CSV file but I have problem when PVsyst reads the file as shown in the figure. I tried to follow exactly the instruction in the template provided in PVsyst but still the problem Can anyone help with this problem?
