orientation Pamareters Pvsyt 8

[mohamed abdelkader]

Hello ,

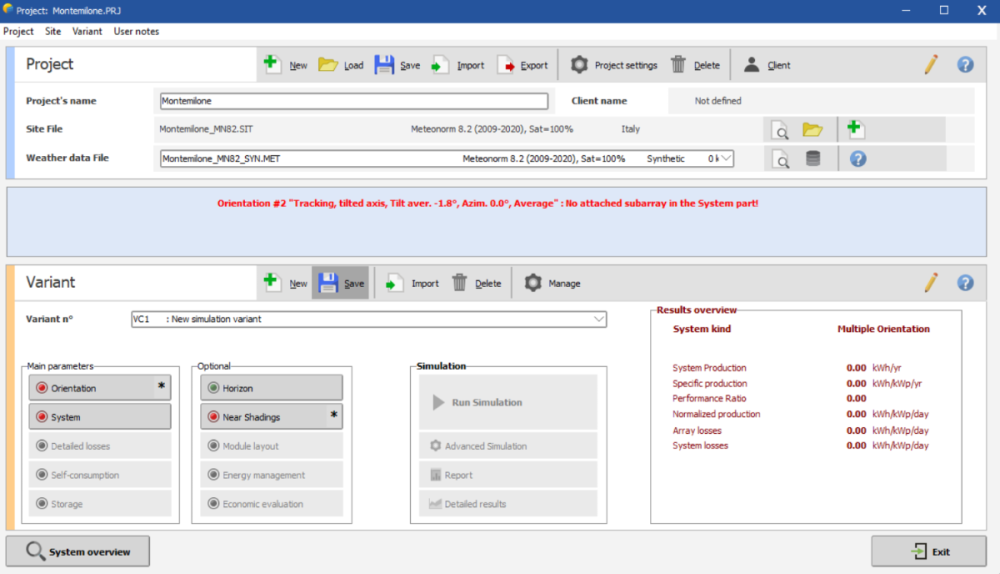

i have inserted arrays in the software and system orientation was trackers . Then i tried to import the file exported from Pvcase i got that message . i couldn't reslove that issue in versione 8 . coud you help please ?



[Linda Thoren]

Hi,

It seems like you have defined an orientation (Orientatation #2) that has not been defined in the system.
In the system window, make sure that all the orientations (shown in the drop down list) has been assigned in a sub-array (list of subarrays to the left)

[mohamed abdelkader]

Hello ,

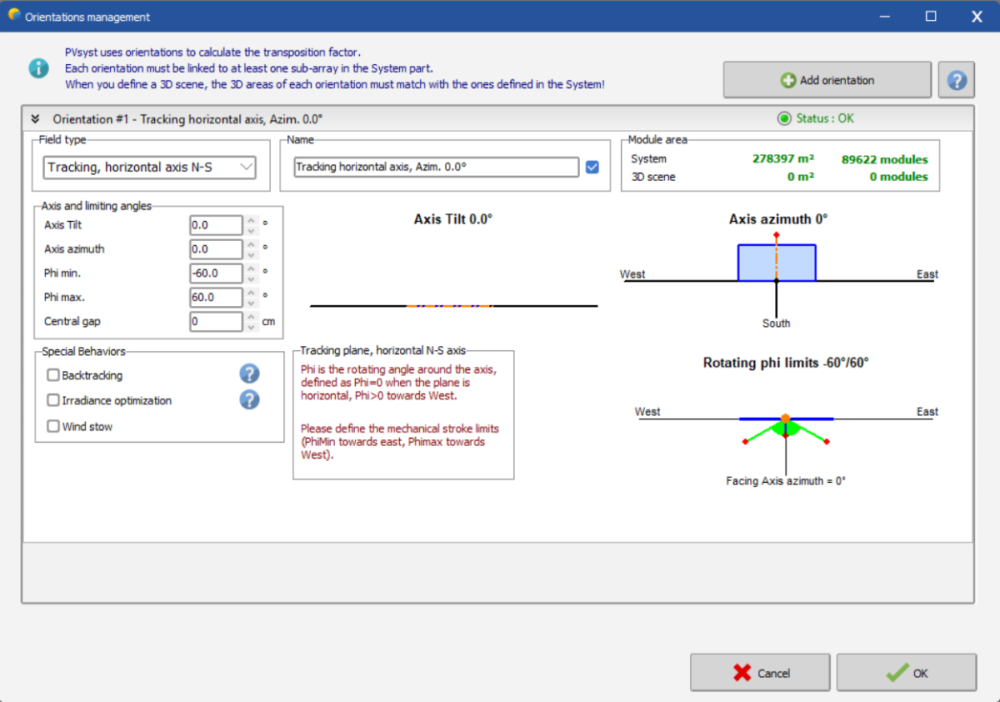

Thanks for your reply . but i didn't insert different orientation  . in the initial page of orientation i have chosen tracker N-S ( see image 1)  . then i inserted the file imported from PVcase ( .PVC) in the near shading but i found automatically there are two different orientations ans therefore , i am not able to complete the simulations . in the PVcase file we checked all stings all of them have the same orientations .  the problem is not existing in PVsyst 7.4





[Muhammed Sarikaya]

Dear,

See my example below on how to proceed:

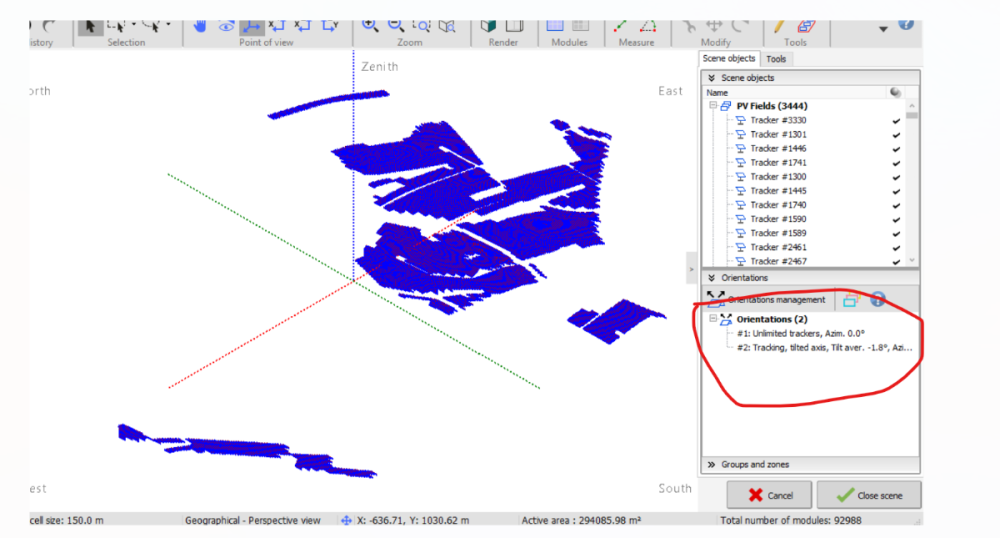

Click Orientation Management:

Then, select the orientation you want to delete and delete it, as shown below:

Regards,
