Schema de principe

[simon-pierre]

Bonjour,

Avec la V8, je n'arrive plus à accéder au schéma unifilaire de principe pour l'installation. Y-a-t'il des informations recquises que j'aurais pu oublier ?

Merci et bonne journée.



[Bruno Wittmer]

Dear Simon-Pierre,

Please note, that in order to reach a larger audience, the forum language is English. Your question is probably meaningful for many other PVsyst users, and therefore I will answer in English.

The generation of the single line diagram (SLD) in PVsyst has some limitations. As an example, some power optimizer architectures or ambiguous MPPT/inverter assignments can lead to this situation where the program is not able to build the SLD.

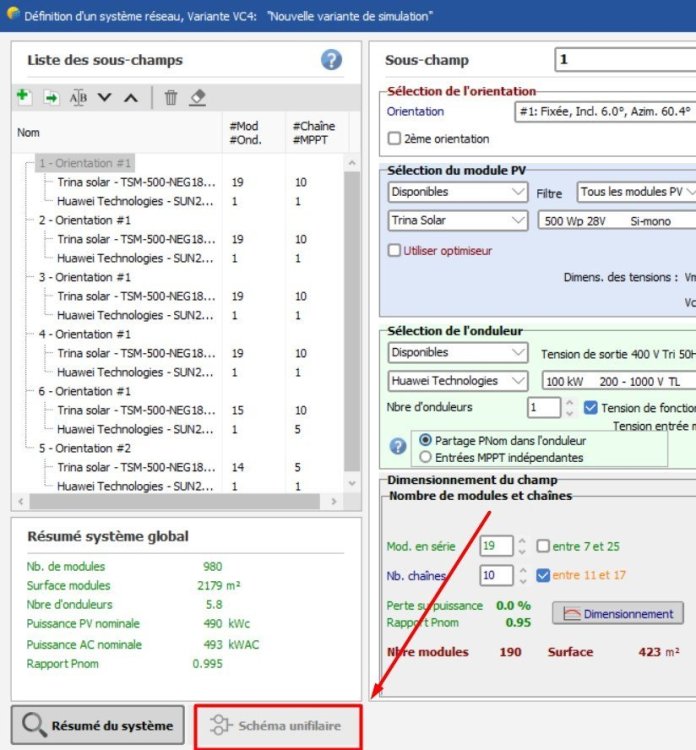

The sub-array in the screen shot you posted does not contain anything special that would prevent the generation of the SLD, but I see that there are other sub-arrays, and maybe the problem is coming from one of them.

You can send a copy of your project to support@pvsyst.com, and we will have a closer look on why this happens. To export the project, please go to 'Files-> Export projects' in the main window. Select the project and click on 'Export'. This will create a single file with .zip extension, that you can e-mail to us.

We are continuously improving the generation of the SLD, to cover more and more of the cases that are currently not handled. Additionally we will also foresee messages for the case that the generation fails, to give some feedback to the user rather than just disabling the button. I have added a corresponding ticket to our development pipeline.
