bendesa1962 Posted March 11, 2022 Share Posted March 11, 2022 Hi, I've defined a 3d model in PVSyst but it doesn't show up in the report. I've tried several times but it just doesn't show up Anybody can help? Many thanks! Kind regards Link to comment Share on other sites More sharing options...

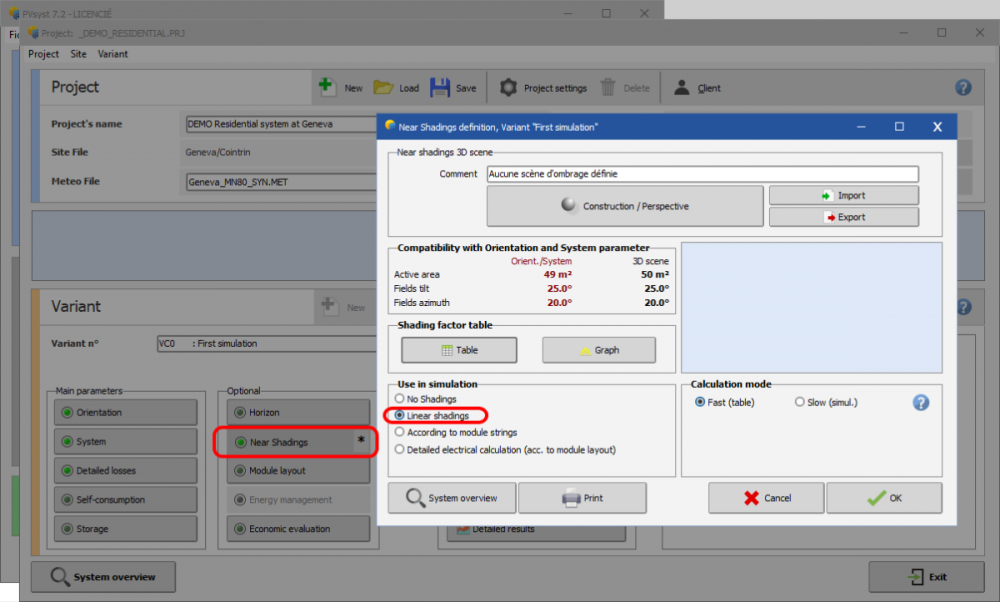

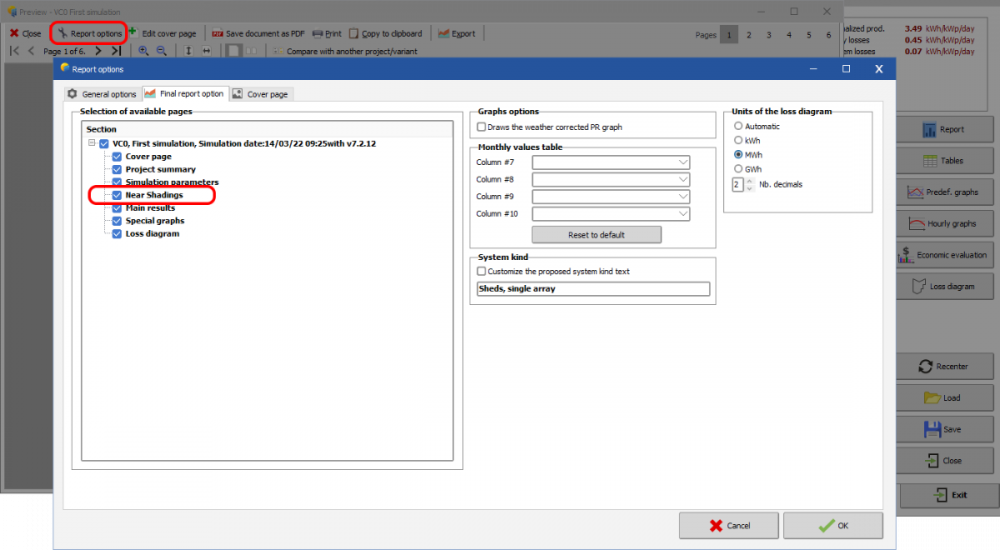

Stéphane Metz Posted March 14, 2022 Share Posted March 14, 2022 Hi bendesa1962, Check that the shading calculation is selected in the near shadings dialog: Also, check in the report options that you are generating the near shadings page: Regards, Link to comment Share on other sites More sharing options...
bendesa1962 Posted November 21, 2022 Author Share Posted November 21, 2022 Thanks,that did work out! Link to comment Share on other sites More sharing options...
